Chiron 1 B RP

AL5352

  • High efficiency, compact LED linear module
  • 310x35x30 mm / 12.2x1.38x1.18"
  • Specific for wall grazing, floodlighting or wall washing effects
  • Comprehensive selection of optical configurations
  • High brightness Natural White and Warm White power LEDs

View LED colour configuration: 27 Warm White 2700K
  • 40 Natural White 4000K
  • 30 Warm White 3000K
  • 27 Warm White 2700K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

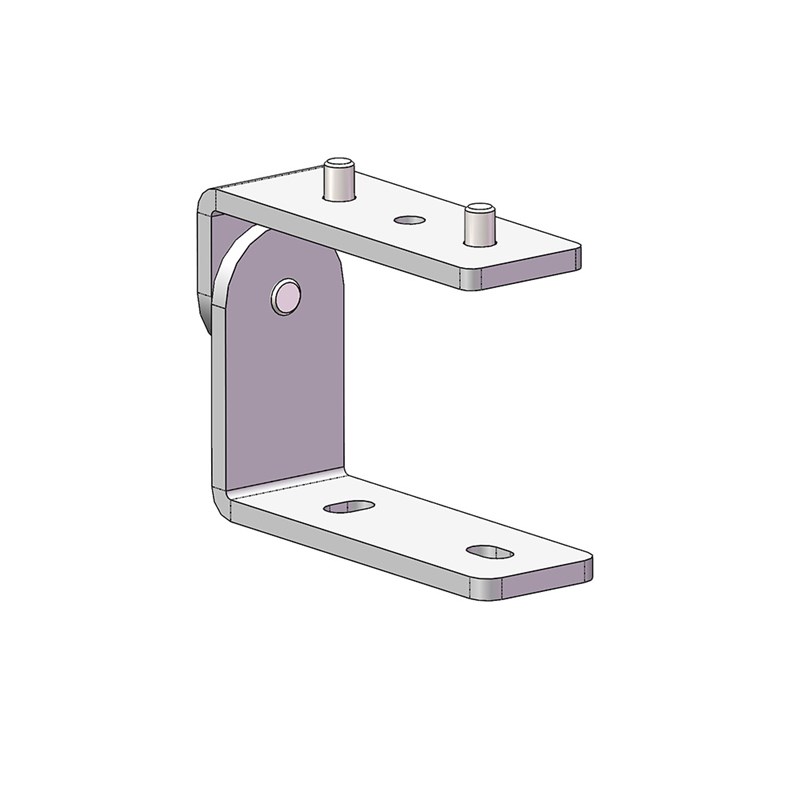

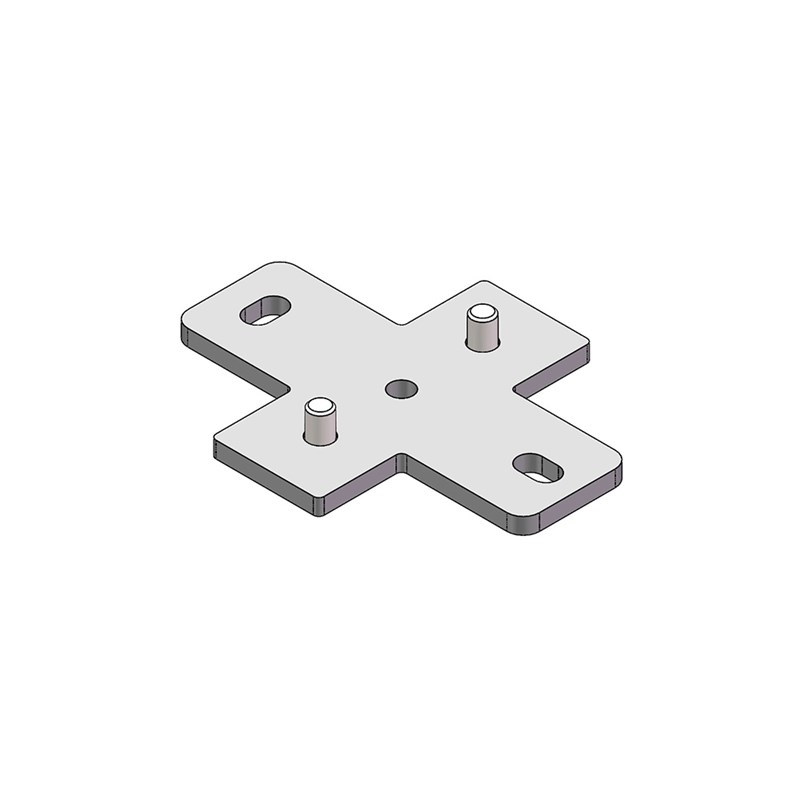

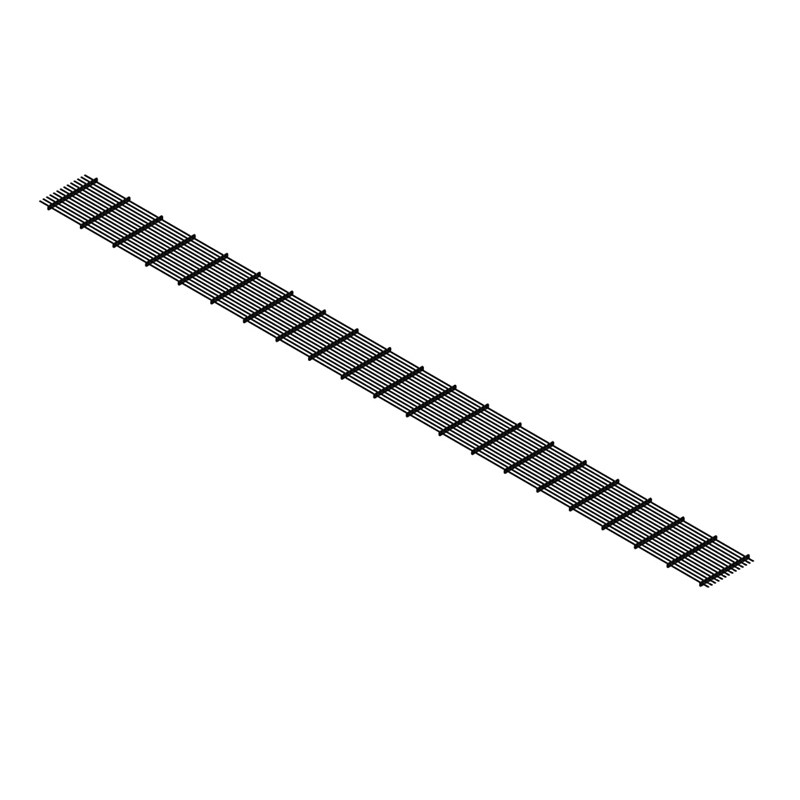

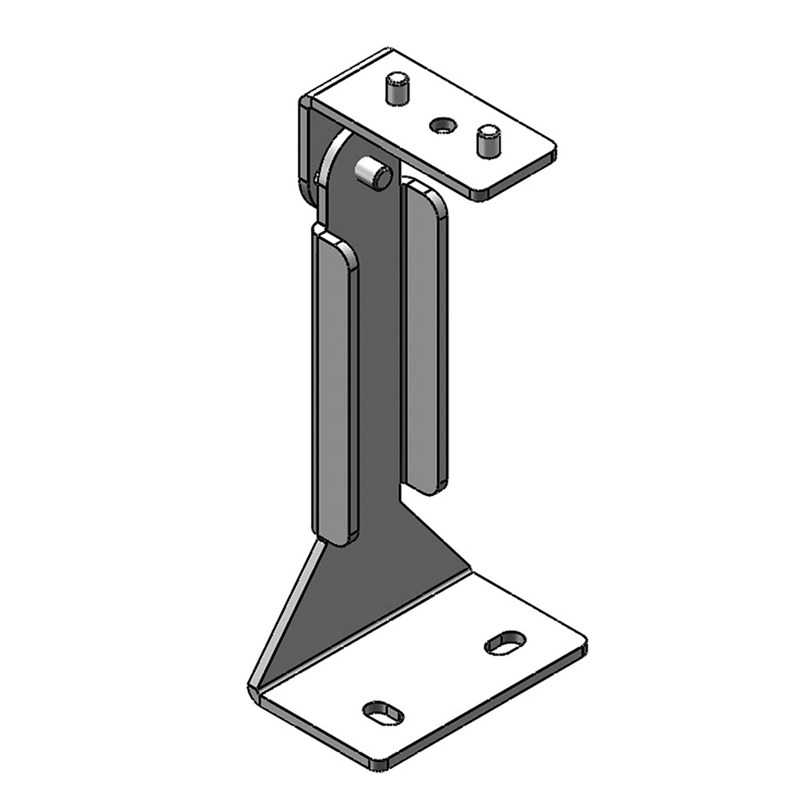

CHIRON 1 B RP is a high-efficiency linear LED module featuring a very compact and slim chassis for a comfortable installation in narrow or remote spaces. Its elegant profile and versatile configuration meet the requirements of top lighting designers in need of a powerful but easily adaptable luminaire. Owing to a wide optics portfolio, CHIRON 1 B RP allows wall grazing, floodlighting or wall washing effects in different white light colour temperatures. It is the right fit for general façade lighting of historical or modern buildings, urban structures as well as residential and hotel complexes. Continuous end-to-end installation of several units delivers a uniform distribution and constant pixel pitch. Equipped with remote PSU, CHIRON 1 B RP is available with either DMX or DALI control options, or in the easy-to-use ON-OFF version. A selection of accessories, among which visor, 3-sided visor, micro louvre, and mounting brackets, further enhances the product versatility.
Colour configuration
High brightness Natural White and Warm White (2700K, 3000K, 4000K) power LEDs
Optical configuration
20° NA (Narrow)
30° ME (Medium)
48° (8° incline) WI (Wide)
60° EW (Extra wide)
18°x38° EL (Elliptical)
24°x32° WW (Wall wash)
Max. Delivered lumen output
1313 lm (CRI 80 – ME 30/40 configuration)
Max. lumen/Watt
91 lm/W (CRI 80 – ME 30/40 configuration)
Input voltage
24 - 48VDC
Power consumption
14.4W
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty
Accessories

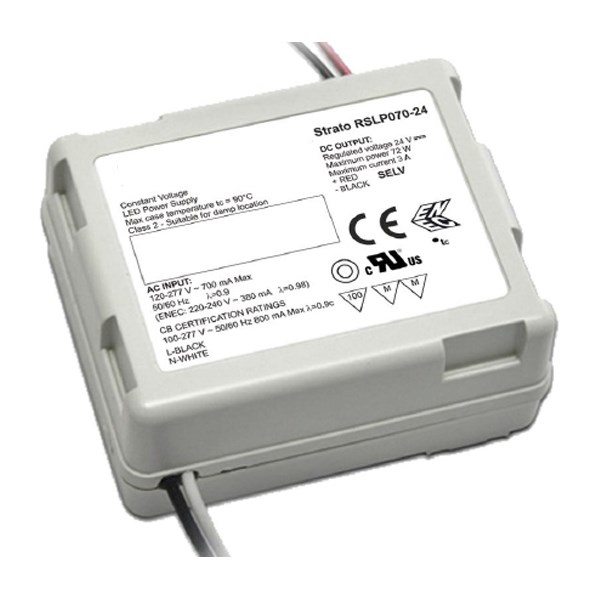

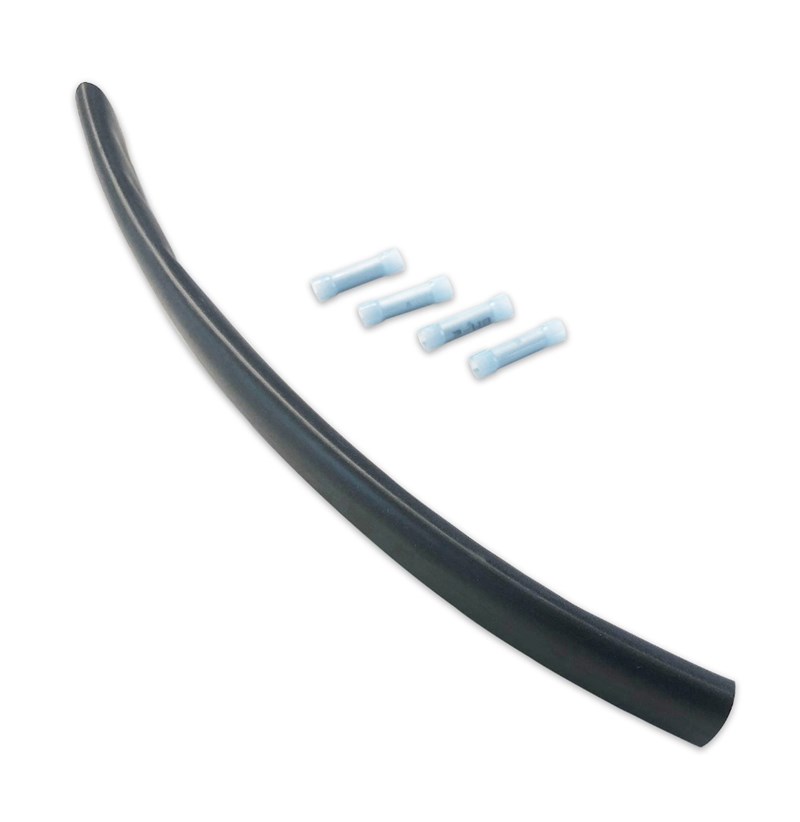

Optional optical distribution and mounting accessories available for the utmost design flexibility. External PSU to be ordered separately

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Wall wash


Overview

  • IP67
  • IK07
  • PWM
  • III
  • Meets CE safety standards, Rohs compliant

Optional Features

  • ETL pending
