  • Max. delivered lm output: 1730 lm /43 lm/W
  • Size: (WxD) ø 306x365 mm / ø 12x14.4”
  • Control system: DMX-RDM, remote wireless data
  • Drive-over multichip LED uplighter with a smart beam angle orientation adjustment of 9°
  • Please note that the formwork must be purchased separately

View LED colour configuration: RGB+W 4000K
  • RGB+W 4000K
  • RGB+W 3000K
Contact us  Save product

General Features

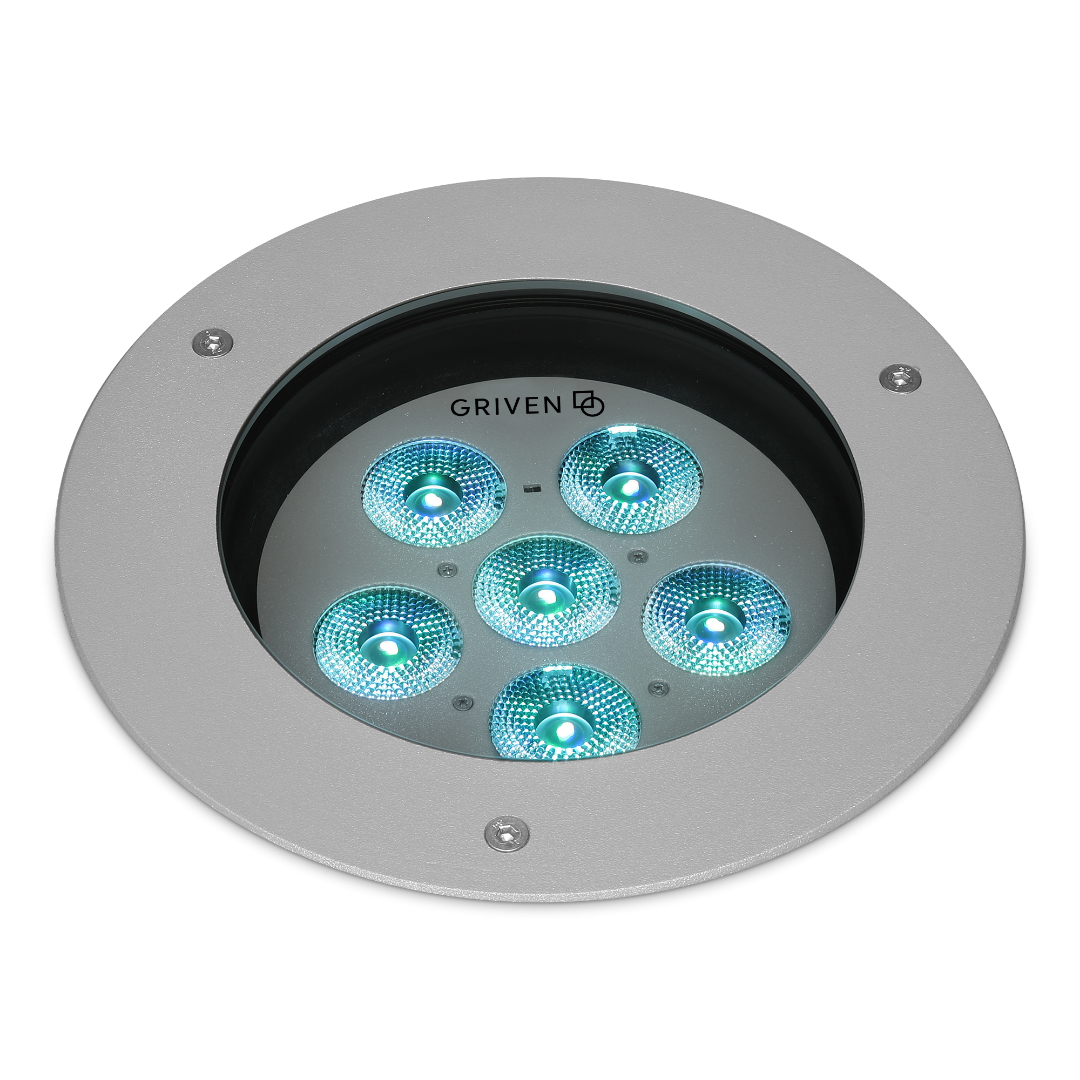

Featuring a smart beam angle orientation adjustment, DUNE MC MK3 RGBW is a highly performing IP68 rated LED uplighter ideal for spot lighting, wall grazing and wall washing effects in exterior recessed applications. Based on an efficient combination of strikingly powerful multichip LEDs, which enhance seamless light distribution and smooth colour transition, the combination of premium class RGBW LEDs, featuring 4000K natural white, delivers the widest range of warm white shades and pastel tones assortment. Its AISI 316L stainless steel body features a 2000 Kg deadweight load capacity, which makes it suitable for in-ground applications even in vehicular areas. The Polar Edition features an integrated de-icing system with electrically heated glass, which assures a comfortable functioning even in the utmost severe cold weather conditions.
Colour configuration
High brightness RGB+W 4000K or 3000K multichip LEDs
Optical configuration
8° SP (Spot)
10° NA (Narrow)
24° ME (Medium)
37° WI (Wide)
Max. Delivered lumen output
1730 lm
Max. lumen/Watt
43 lm/W
Input voltage
100-240VAC / 50-60 Hz
Power consumption
0.2A@230V / 40W max.
Ingress protection rating
IP68 (-1.5 m). NOT SUITABLE FOR UNDERWATER USE. The fixture is resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes.
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
2-year warranty
Unless an RDM compatible control is used, this fixture must always be purchased with AL1321 Infrared Remote Control. More units can be controlled with one AL1321. The formwork code AL8349 must be purchased separately.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


  • IP68 (-1.5m)
  • IK10
  • DMX
  • RDM
  • I
  • Drive-over
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • Anti-slip treatment, for a safe and comfortable use in pedestrian areas, available on request
  • Polar
  • ETL pending
