Eklipse White Light

AL4373

  • LED graphic light shaper
  • 170x91x47 mm / 6.7x3.6x1.8"
  • Ideal for architectural accent lighting and optical effects
  • Compact body for an easy positioning in reduced spaces
  • Premium quality high brightness white power LEDs

View finishes: Black RAL 9005
  • Black RAL 9005
  • Anthracite RAL 7016
  • Grey RAL 9006
  • White RAL 9003
  • Custom RAL available on request
View LED colour configuration: Natural White 4000K
  • Natural White 4000K
  • Warm White 3000K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

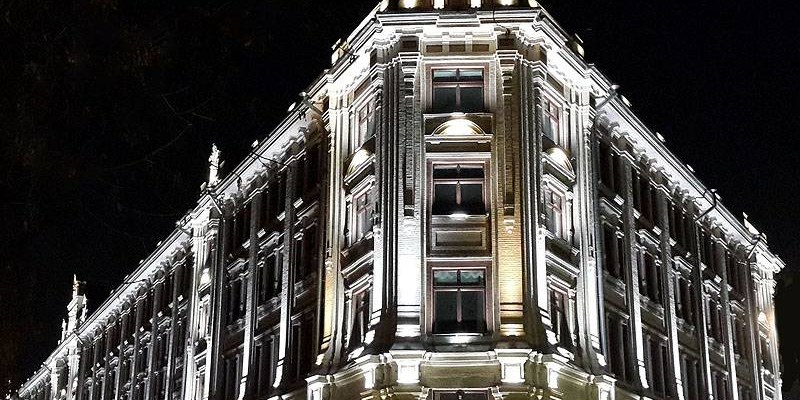

Designed for specific applications or windowsills, EKLIPSE W is an LED graphic light shaper, which highlights inner frames or outer edges of windows balconies or repeating architectural elements, while designing appealing optical effects on buildings façades and creating boundless accent lighting solutions. The cool, natural or warm white LEDs set-up creates a stunning visual rendering of warm tones or cool shades, thus offering a broad range of application purposes.
Colour configuration
High brightness Cold White, Natural White, Warm White or, on request, monochrome power LEDs
Optical configuration
13°x127° EL (Elliptical)
21°x50° WL (Elliptical wide)
Max. Delivered lumen output
472 lm (EL CW configuration)
Input voltage
Main unit 48VDC. IP67 separate transformer 100-277VAC / 50-60Hz
Power consumption
0.2A@230V / 10W max.
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty

Light Beam Effects

  • Elliptical
  • Elliptical wide


Overview

  • IP66
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant

Optional Features

  • Corrosion resistant coating for product installation in coastal environment available on request
  • CSA certified version available on request
