Graph-i-Cell 3 White Light

AL4505

  • High brightness single pixel fixture for the creation of multiple graphic patterns and low resolution video files
  • 130x128x91 mm / 5.1x5.12x3.6"
  • Dome shaped 180° opaline diffuser
  • Sharp image rendition and optimal peripheral visibility
  • Premium quality high brightness white power LEDs

View finishes: Black RAL 9005

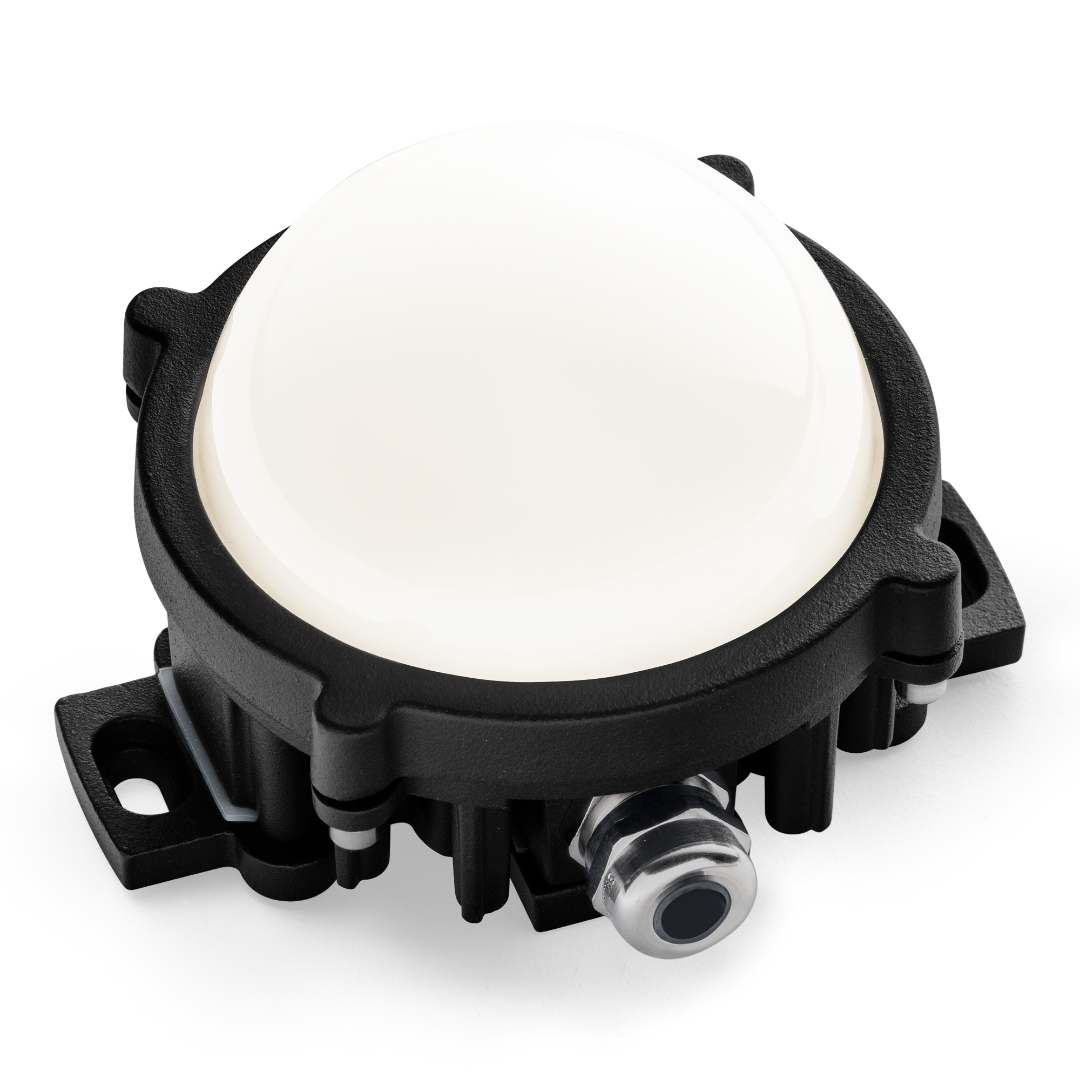

  • Black RAL 9005

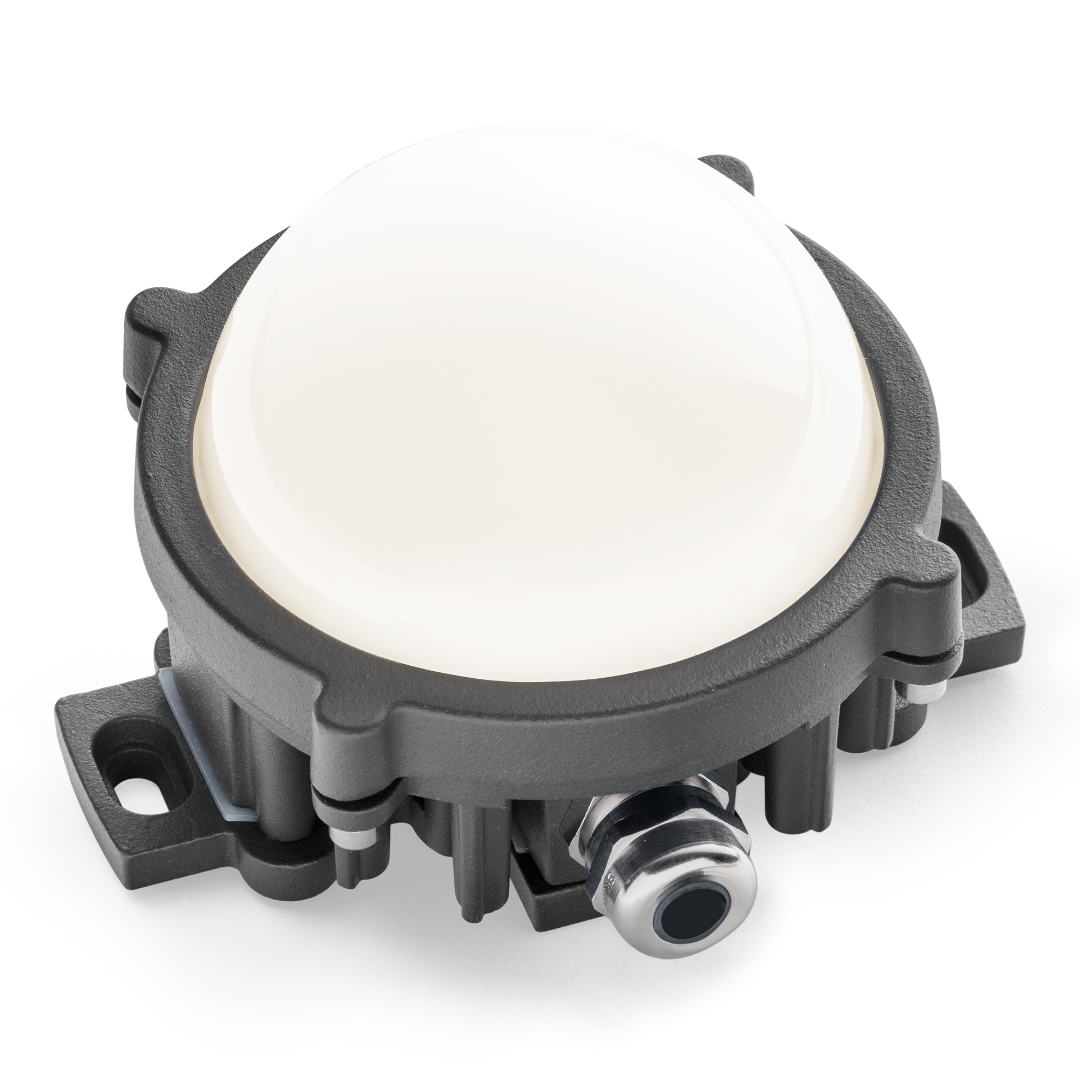

  • Anthracite RAL 7016

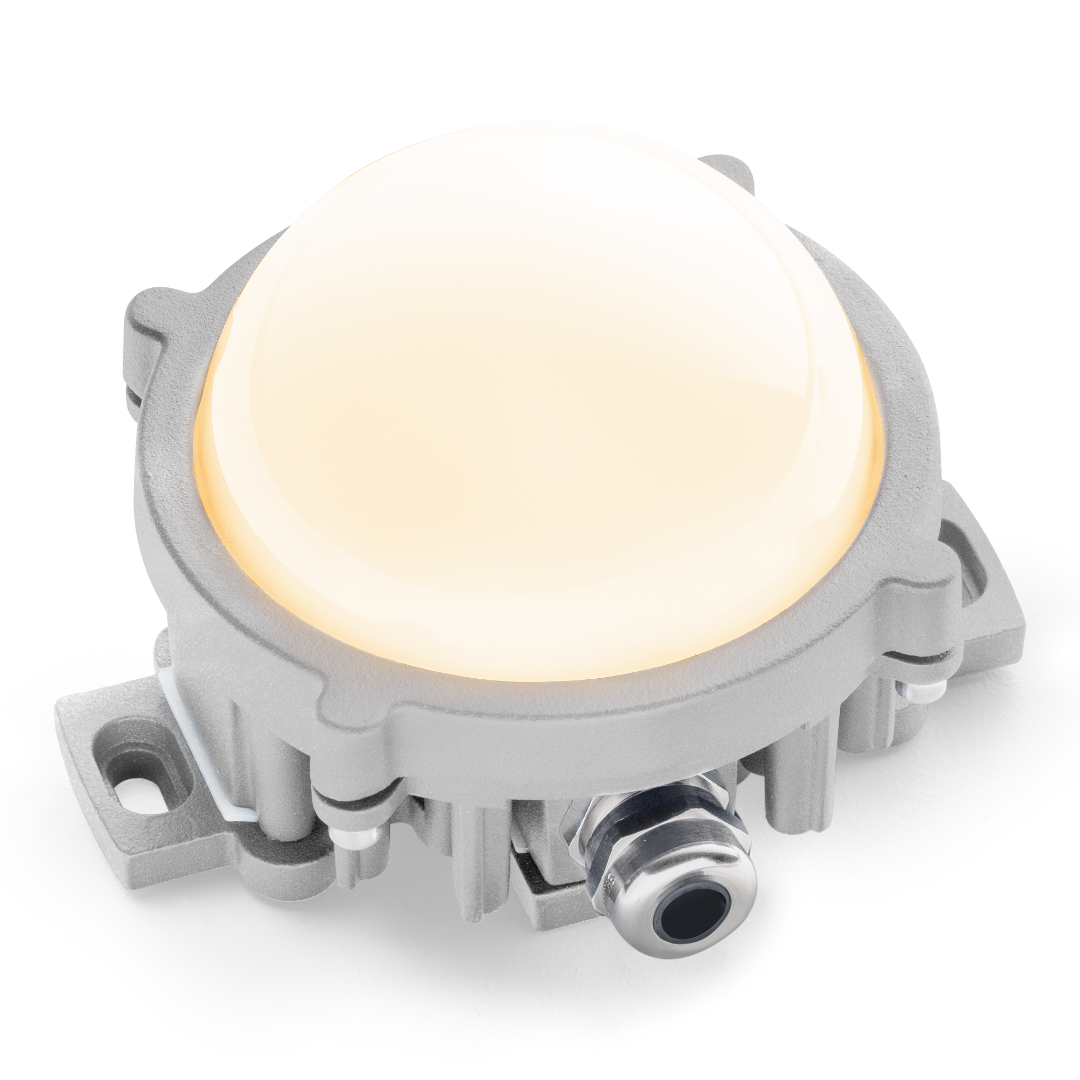

  • Grey RAL 9006

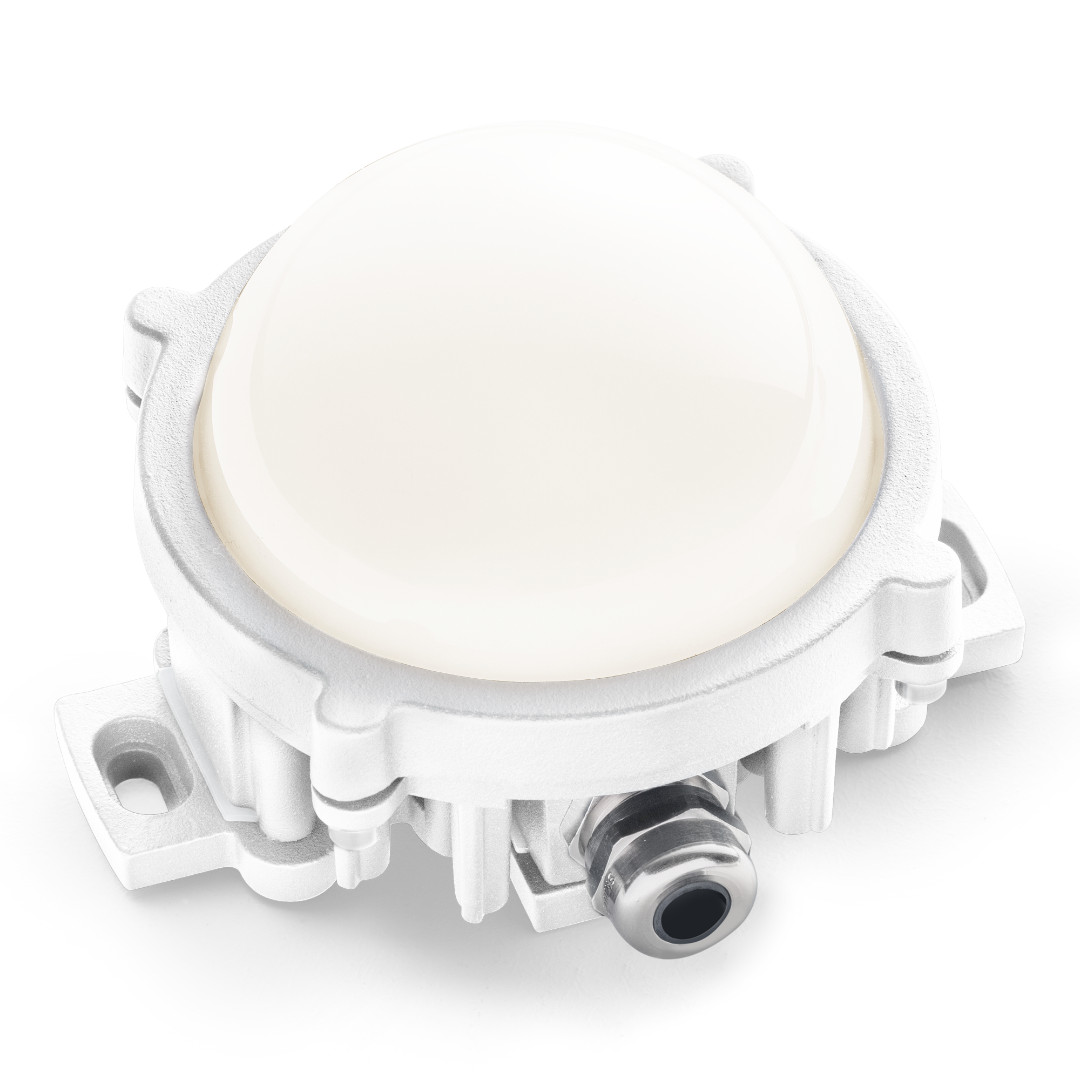

  • White RAL 9003
  • Custom RAL available on request
View LED colour configuration: Cold White 6500K
  • Cold White 6500K
  • Natural White 4000K
  • Warm White 3000K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

Graph-i-Cell 3 White Light

General Features

Fitted with a dome shaped 180° opaline diffuser for a sharp image rendition and an optimal peripheral visibility, this high brightness single pixel fixture can be easily assembled with other units of its kind to screen low resolution video files and graphic patterns. Available in DMX / Self-Addressing mode. GRAPH-i-CELL 3 W can be integrated with the existing architecture or stage back drop while shaping a brand new outstanding ambience. Graph-i-Cell 3 W can accept, via DMX interface, any graphic, video or still image coming from a DVI media server and the configuration system can then store and trigger the show to a striking visual effect. The IP65 weather protection rating makes it suitable for almost any application.
Video
Colour configuration
High brightness Cold White, Natural White, Warm White or, on request, monochrome power LEDs
Optical configuration
180°
Luminance
11200 cd/m2
Pixel pitch
130 mm (minimum)
Resolution
49 pixel/m2 (maximum)
Input voltage
Main unit 48VDC. IP67 separate transformer 100-277VAC / 50-60Hz. 20 modules per line maximum
Power consumption
13W maximum (1 module at full intensity)
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-30°C to 40°C / (-22°F to 104°F)
Warranty
5-year warranty
Accessories
Each Graph-i-Cell 3 W MUST always be purchased with power and data connection cables if the distance between the LED pixels is longer than 1m.

Light Beam Effects

  • Opaline dome


Overview

  • IP66
  • IK10
  • DMX
  • Self-addressing
  • III
  • Meets CE safety standards, Rohs compliant

Optional Features

  • Corrosion resistant coating for product installation in coastal environment available on request
  • CSA certified version available on request
