Graph-i-Pix RGB

AL5220

Ultra-slim RGB LED module
1000 x 28 x 32 mm / 39.37 x 1.1 x 1.26"
Independent 8-pixel conﬁguration

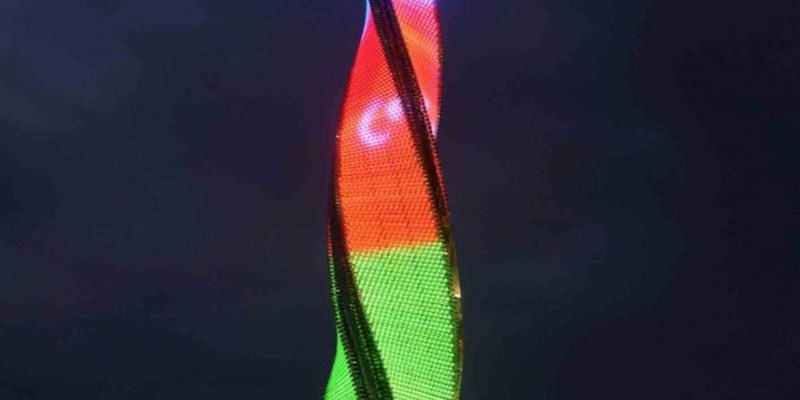

Creation of almost any graphic visual concept on large scale façades
High brightness RGB multichip LEDs

Graph-i-Pix RGB

General Features

Featuring an independent 8-pixel conﬁguration, GRAPH-i-PIX RGB is capable of reproducing almost any graphic visual concept on large scale façades, where more modules can comfortably be set up for a uniform visual pattern layout. Striking direct-view advanced lighting solutions, coupled with the ultra- slim proﬁle and the high-end ingress protection rating, GRAPH-i-PIX RGB stands out for its functionality to blend with the existing architectural environment and meet the most challenging project prerequisites. By incorporating extraordinary pixel mapping features, with GRAPH-i-PIX designers will sculpt 3D elements and abstract imagery without creative limitations and solid artistic impact.

Colour configuration

High brightness RGB multichip LEDs

Optical configuration

110°

Luminance

277778 cd/m2

Pixel pitch

125mm min. (6 LEDs)

Resolution

280 pixel/m2 max.

Input voltage

Main unit 24VDC. IP67 separate transformer 100-277VAC / 50-60Hz. From 40 to 80 modules per line maximum according to cable length

Power consumption

12W/m

Ingress protection rating

IP66

Impact resistance rating

IK08

External operating limits

-20°C to 50°C / (-4°F to 122°F)

Warranty

5-year warranty

Accessories

GRAPH-i-PIX must always be purchased with AL5250 Address setting DMX driver to set the DMX address. More GRAPH-i-PIX units can be addressed with one AL5250.
