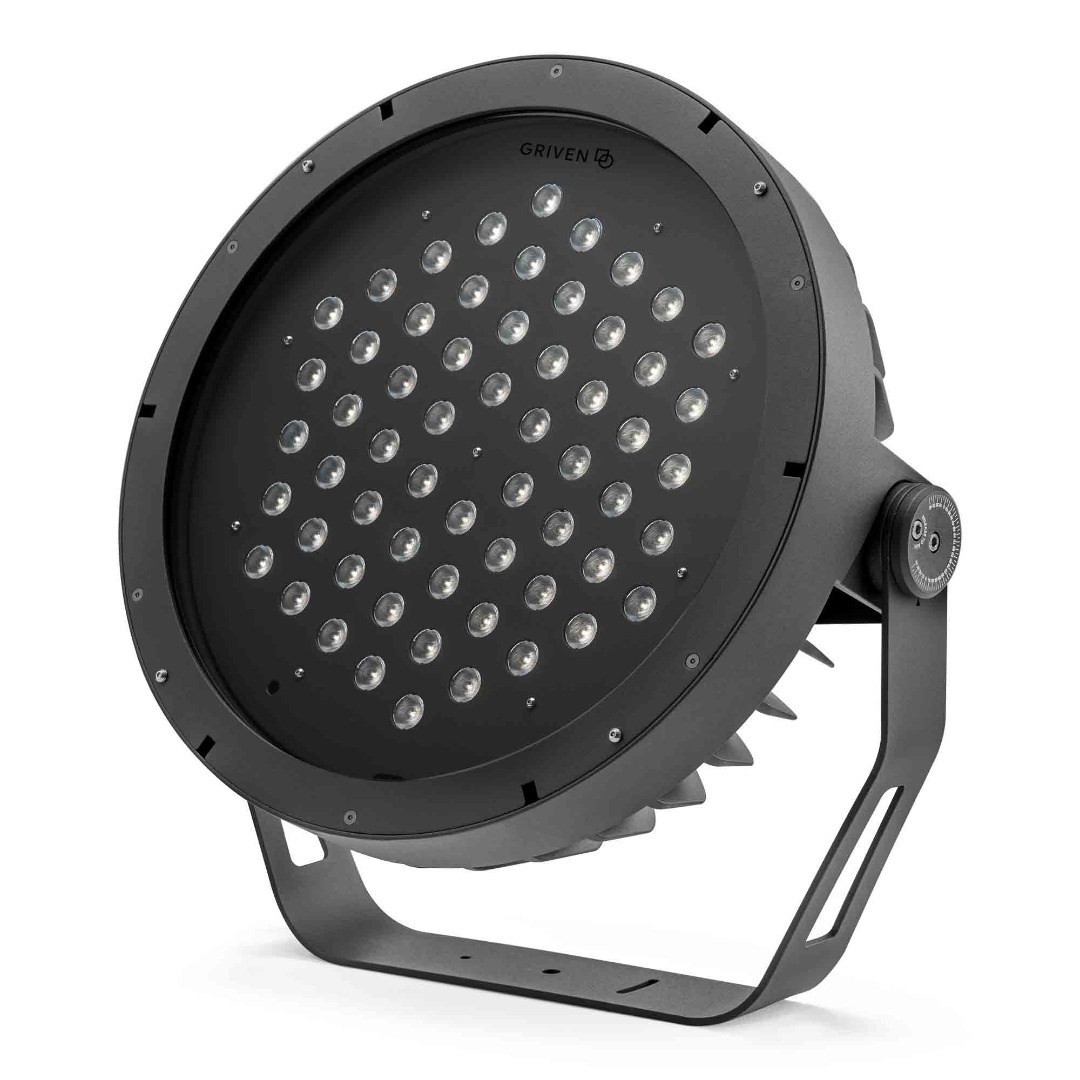

Ideal for spot or flood lighting of building façades or large scale architectural structures, JASPER MK2 W meets the latest design requirements and aesthetical prerequisites demanding for powerful and efficient white lighting solutions capable of delivering high level performances with a reduced power consumption. JASPER MK2 W features a restyled
chassis and hybrid cables to provide ease of installation, user-friendliness
and clean setting-up. The natural or warm white LEDs set-up creates a stunning visual rendering of white shades for a broad range of application purposes. This luminaire offers an expansive selection of different optical distributions. The Polar Edition features an integrated de-icing system with electrically heated glass, which assures a comfortable functioning even in the utmost severe cold weather conditions.
Video
Colour configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
7° US (Ultra spot) 12° SP (Spot) 15° NA (Narrow) 25° ME (Medium) 47° WI (Wide) 61° EW (Extra wide) 125° UW (Ultra wide) 14°X39° EL (Elliptical) 23°x37° WL (Elliptical wide)
Max. Delivered lumen output
21645 lm
Max. lumen/Watt
111 lm/W
Input voltage
100-277VAC / 50-60 Hz
Power consumption
0.88A@230VAC / 195W max.
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Optional feature
The fixture is also available in Class II, on request
Polar Edition
Available on request.
Warranty
5-year warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility
