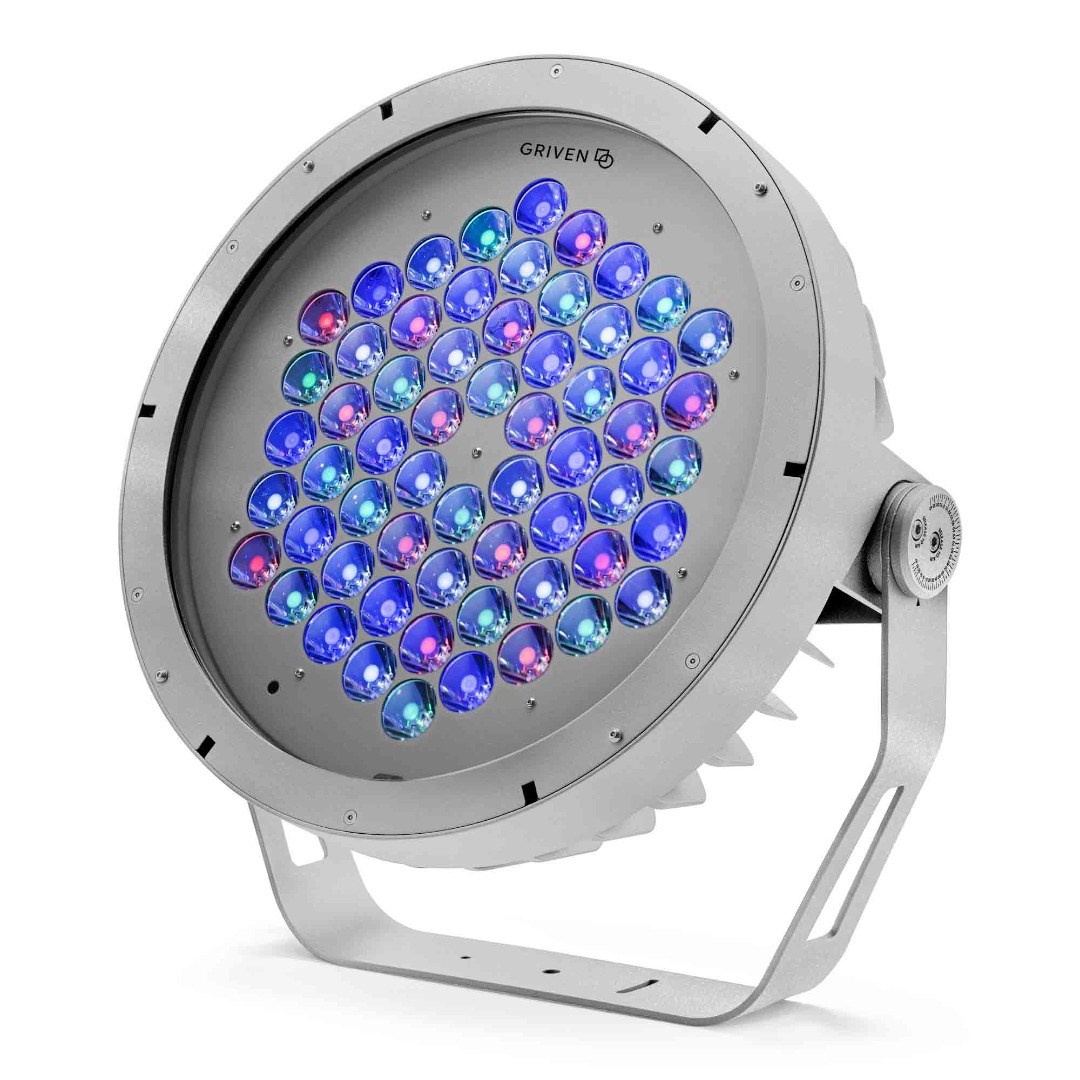

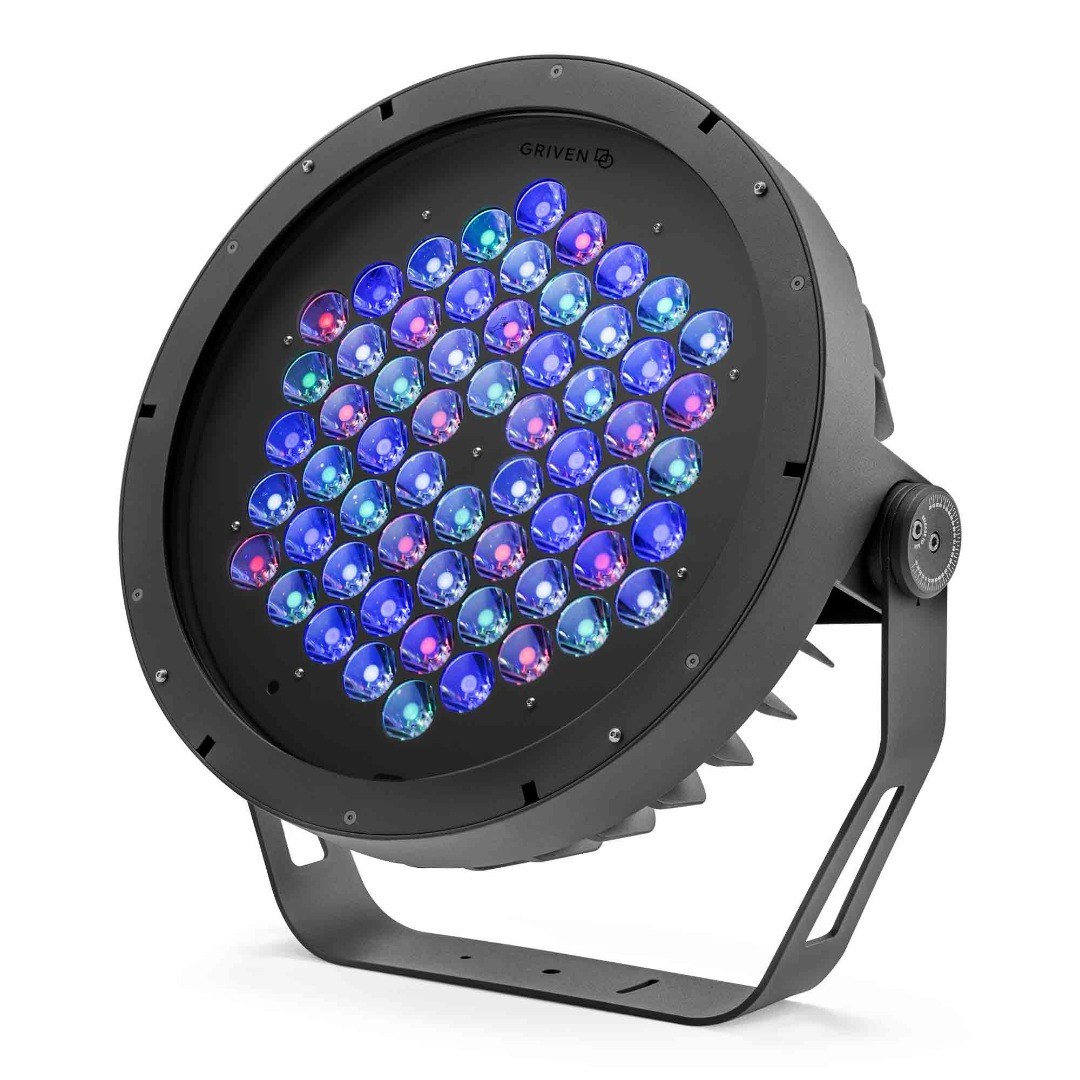

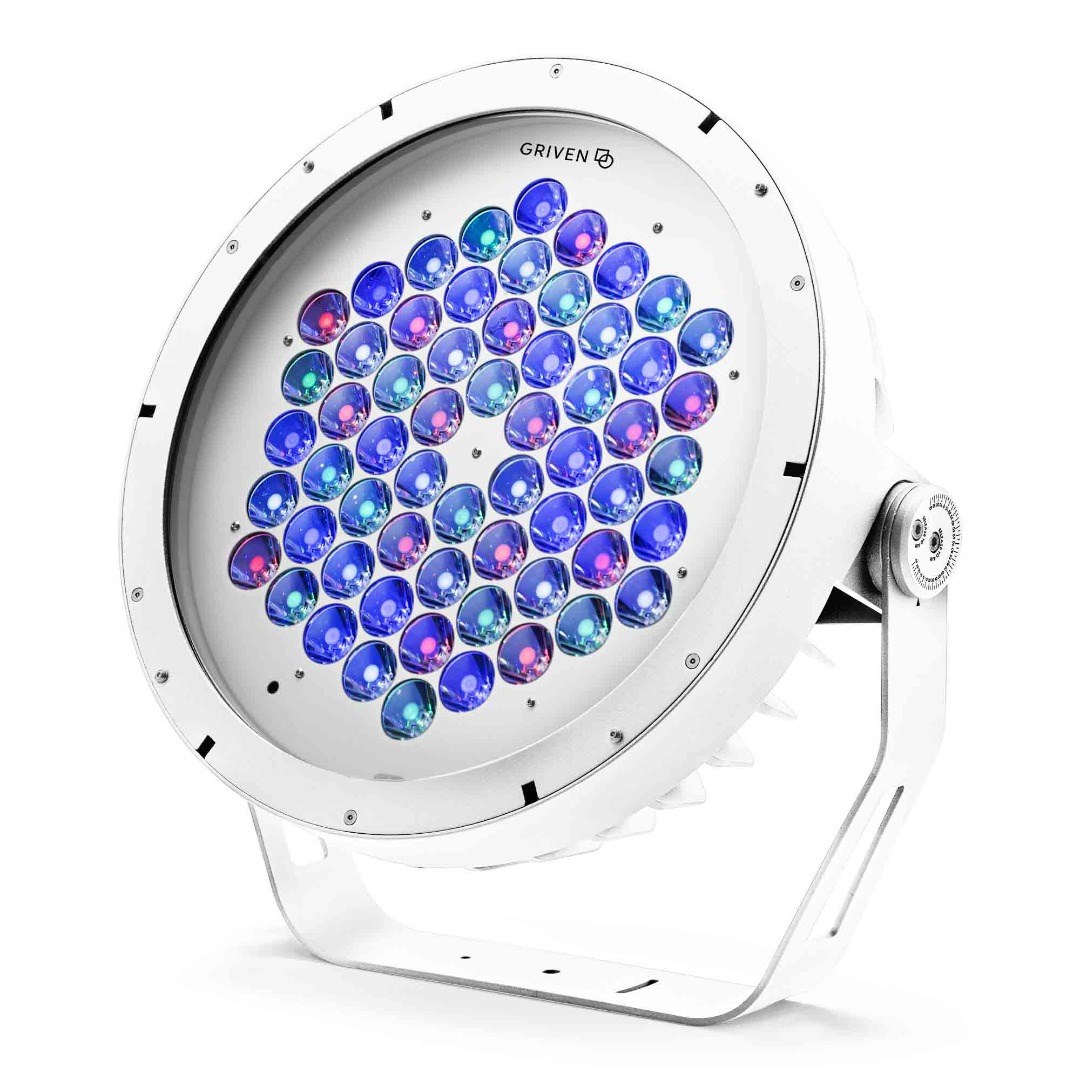

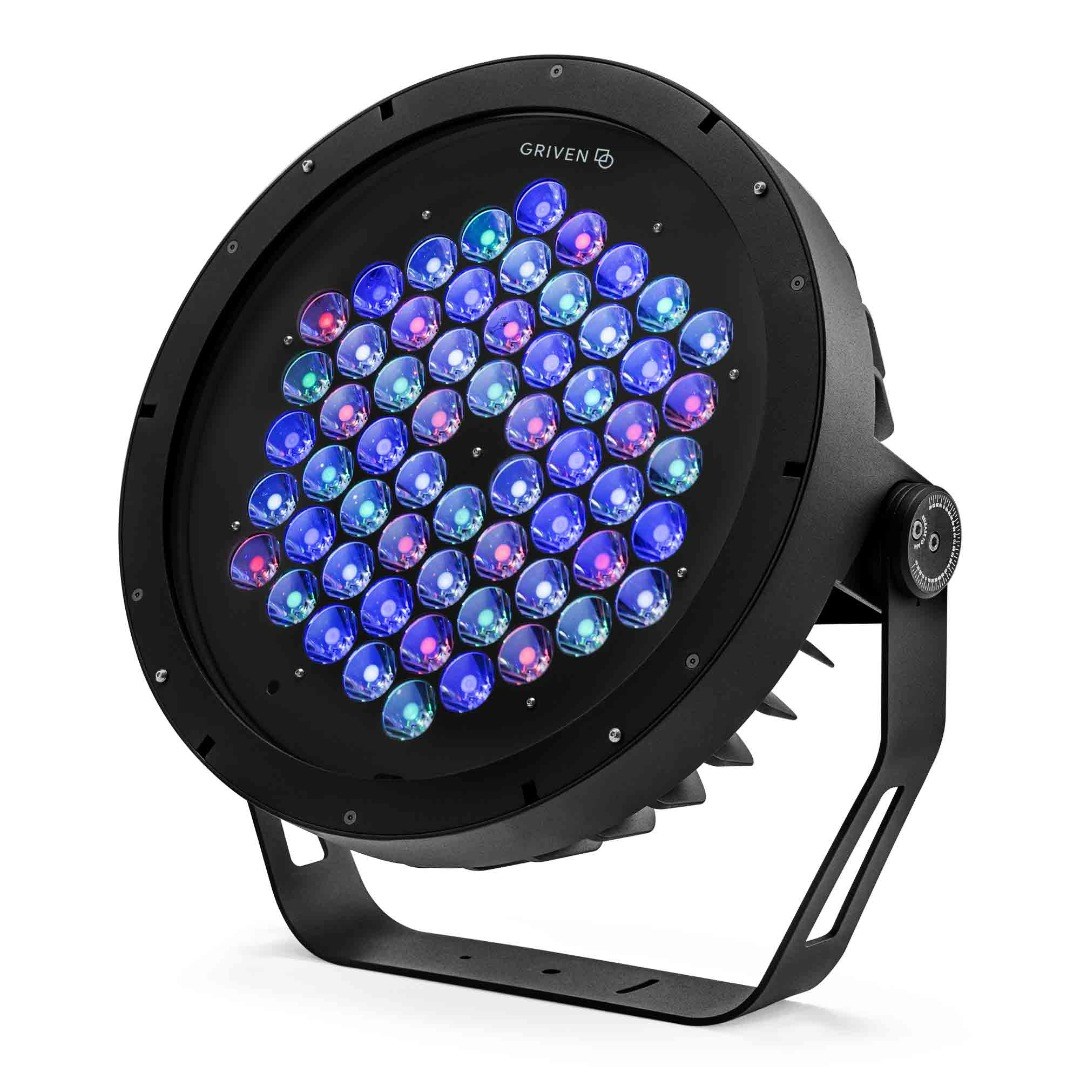

Jasper MK2 RGBW

AL5400

  • Extraordinarily powerful floodlight ideal for general and dynamic accent, spot or flood lighting of large areas
  • 477x142x450 mm / 18.8x5.59x15"
  • Fitted with IN and OUT hybrid cables, combining power and DMX data transmission
  • Premium quality high brightness RGBW power LEDs
  • Polar Edition available

View finishes: Black RAL 9005
  • Black RAL 9005
  • Anthracite RAL 7016
  • Grey RAL 9006
  • White RAL 9003
  • Custom RAL available on request
Contact us  Save product
COLOUR CHANGING
print

General Features

Ideal for spot or flood lighting of building façades or large scale architectural structures, JASPER MK2 RGBW features a restyled chassis and hybrid cables to provide ease of installation, user-friendliness and clean setting-up. It meets the latest design requirements and aesthetical prerequisites demanding for powerful and efficient lighting solutions capable of delivering high level performances with a reduced power consumption. The combination of premium class RGBW LEDs, featuring 4000K natural white, delivers the widest range of warm white shades and pastel tones assortment. This luminaire offers an expansive selection of different optical distributions. The Polar Edition features an integrated de-icing system with electrically heated glass, which assures a comfortable functioning even in the utmost severe cold weather conditions.
Video
Colour configuration
High brightness RGB+W 4000K LEDs
Optical configuration
4° US (Ultra spot)
9° SP (Spot)
11° NA (Narrow)
23° ME (Medium)
43° WI (Wide)
69° EW (Extra wide)
125° UW (Ultra wide)
11°X41° EL (Elliptical)
22°x39° WL (Elliptical wide)
Max. Delivered lumen output
8360 lm
Max. nominal lumen output
8970 lm
Input voltage
100-277VAC / 50-60 Hz
Power consumption
0.88A@230VAC / 195W max.
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Optional feature
The fixture is also available in Class II, on request
Polar Edition
Available on request.
Warranty
5-year warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Ultra Spot
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Ultra Wide
  • Elliptical
  • Elliptical wide


Overview

  • IP66
  • IK10
  • DMX
  • RFU
  • RDM
  • I
  • Meets CE safety standards, Rohs compliant

Optional Features

  • Anti-saline treatment
  • Optional Polar
  • External Wireless Data
  • ETL pending
  • Class II

Downloads
