Micro-dune XQ White Light

AL5219

  • Super compact in-ground uplighter with separate PSU
  • Ø150/136x105/100 mm / Ø5.9/5.4 x 4.1/3.9"
  • Ultra spot optical configuration for an extremely narrow light beam
  • 3000 Kg deadweight load capacity
  • Premium class natural or warm white LEDs

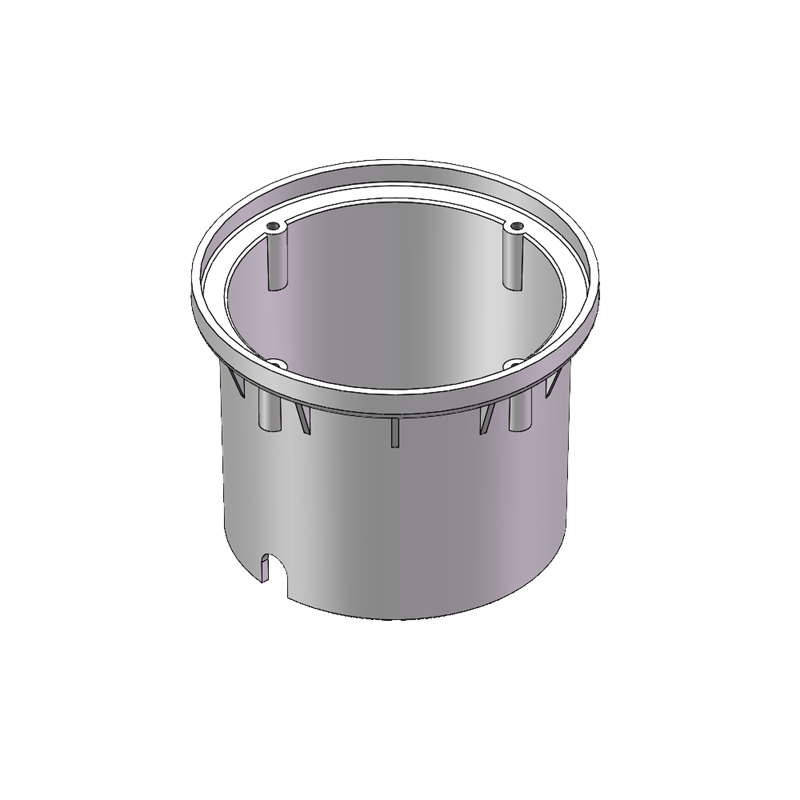

  • Dedicated formwork must be purchased separately

View LED colour configuration: Natural White 4000K
  • Natural White 4000K
  • Warm White 3000K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

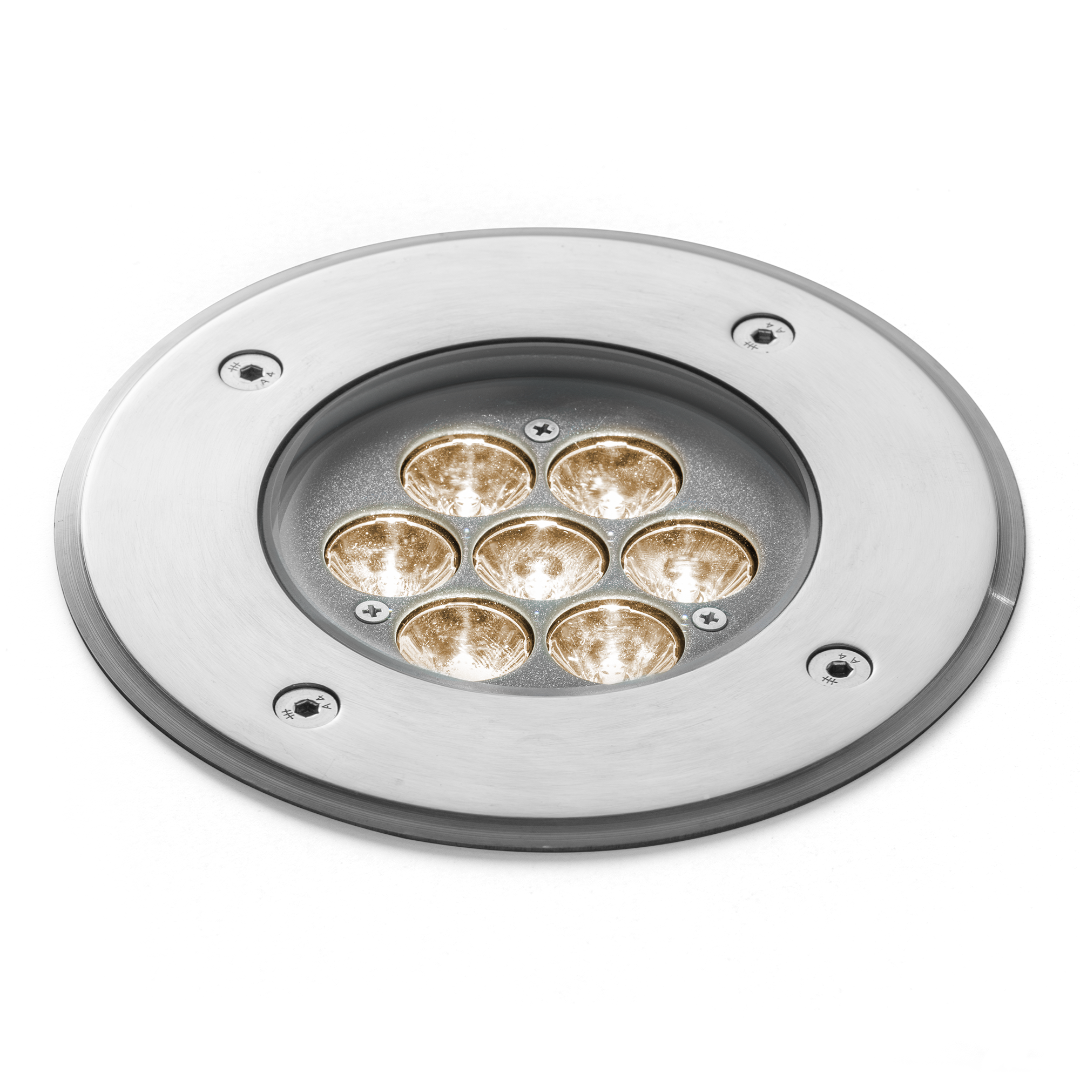

MICRO-DUNE XQ is a super compact in-ground uplighter fitted with seven highly performing white LEDs coupled with ultra spot lenses for an extremely narrow light beam. Its extraordinary luminous efficacy allows to enhance architectural details, such as columns or vertical shafts of large dimensions, with flawless wall grazing effects. MICRO-DUNE XQ is available in natural and warm white light versions, as well as in monochrome releases on request, to meet any design specification. Featuring an IP67 weather protection rating and a 3000 kg deadweight load capacity, MICRO-DUNE XQ is suitable for ground mounting applications even in vehicular areas. Available with separate PSU only.
Colour configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
4.2° US (Ultra spot)
Max. Delivered lumen output
1147 lm (US CW configuration)
Input voltage
220-240VAC / 50-60Hz
Power consumption
13.5W
Ingress protection rating
IP67
Impact resistance rating
IK08
External operating limits
-20°C to 40°C / (-4°F to 104°F)
Warranty
2-year warranty
Accessories
Fitted with integrated power supply, it does not feature DMX options

Light Beam Effects

  • Ultra Spot


Overview

  • IP67
  • IK08
  • I
  • Drive-over
  • Meets CE safety standards, Rohs compliant

Optional Features

  • ETL certified version available on request
