Moled Graphic RGB

AL4367
AL4368

  • High impact linear profile for decorative and signalling in-ground use

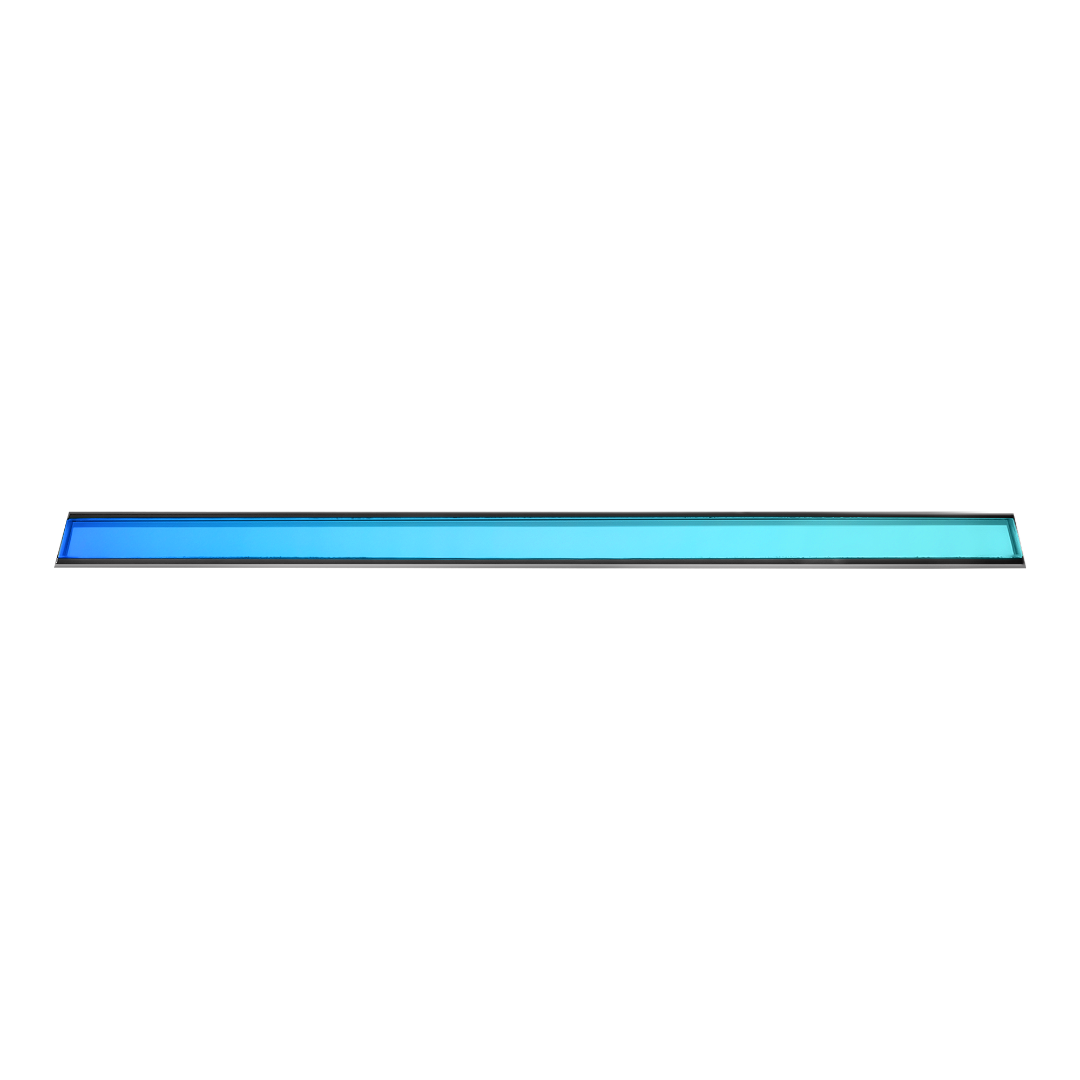

  • 506x80x131 mm / 19.9x3.1x5.16" (Moled Graphic 20)

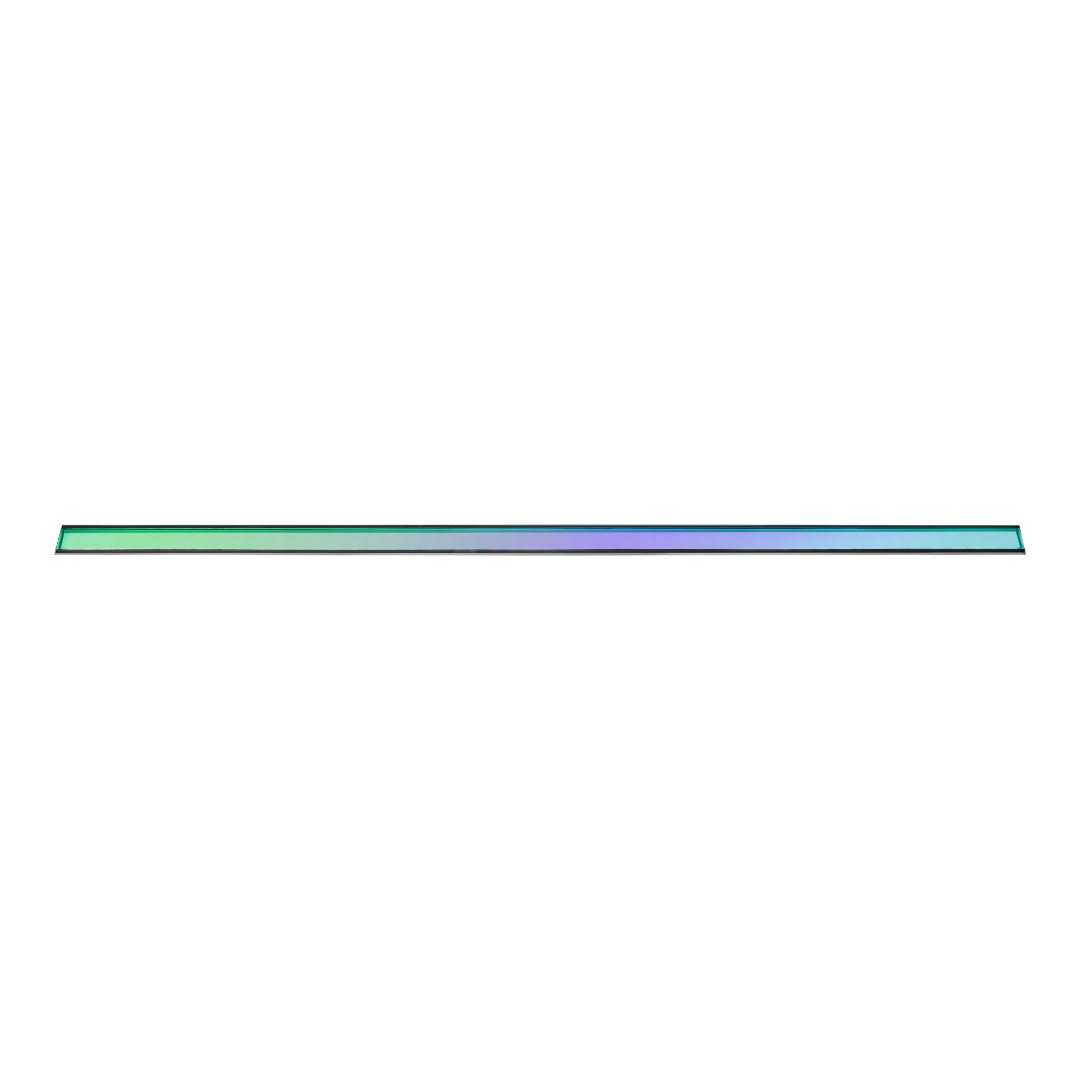

  • 1006x80x131 mm / 39.6x3.1x5.16" (Moled Graphic 40)
  • Enabling an endless layout of patterns and graphics display
  • Extremely compact size and lightweight manageability
  • Available either with 20 or 40 independent RGB LEDs

Contact us  Save product
COLOUR CHANGING
print

General Features

MOLED GRAPHIC RGB is a high impact linear profile for decorative and signalling in-ground use outdoors and indoors. Fitted with 20 o 40 independent RGB LEDs, MOLED GRAPHIC RGB can enable an endless layout of patterns and graphics displays. Featuring extremely compact size and lightweight manageability, MOLED GRAPHIC RGB is equipped with 19 mm thick tempered glass and AISI 316L stainless steel housing. This high-build standard housing is further strengthened by a special micro shot-peening treatment to make the light line homogeneous and the surface shock-resistant.
Colour configuration
High brightness RGB LEDs
Optical configuration
Opaline glass
Input voltage
Main unit 48VDC. IP67 separate transformer 100-277VAC / 50-60Hz
Power consumption
18W/m
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
2-year warranty
Accessories
Unless an RDM compatible control is used, one Weezerd 1 AL2660 must always be purchased for one or more DMX/RDM version units in order to set their DMX address.

Light Beam Effects

  • Opaline glass


Overview

  • IP67
  • IK09
  • DMX
  • Independent pixels
  • Self-addressing
  • III
  • Meets CE safety standards, Rohs compliant

Optional Features

  • CSA certified version available on request
