Moled Graphic RGBW

AL4367
AL4368

High impact linear proﬁle for decorative and signalling in-ground use

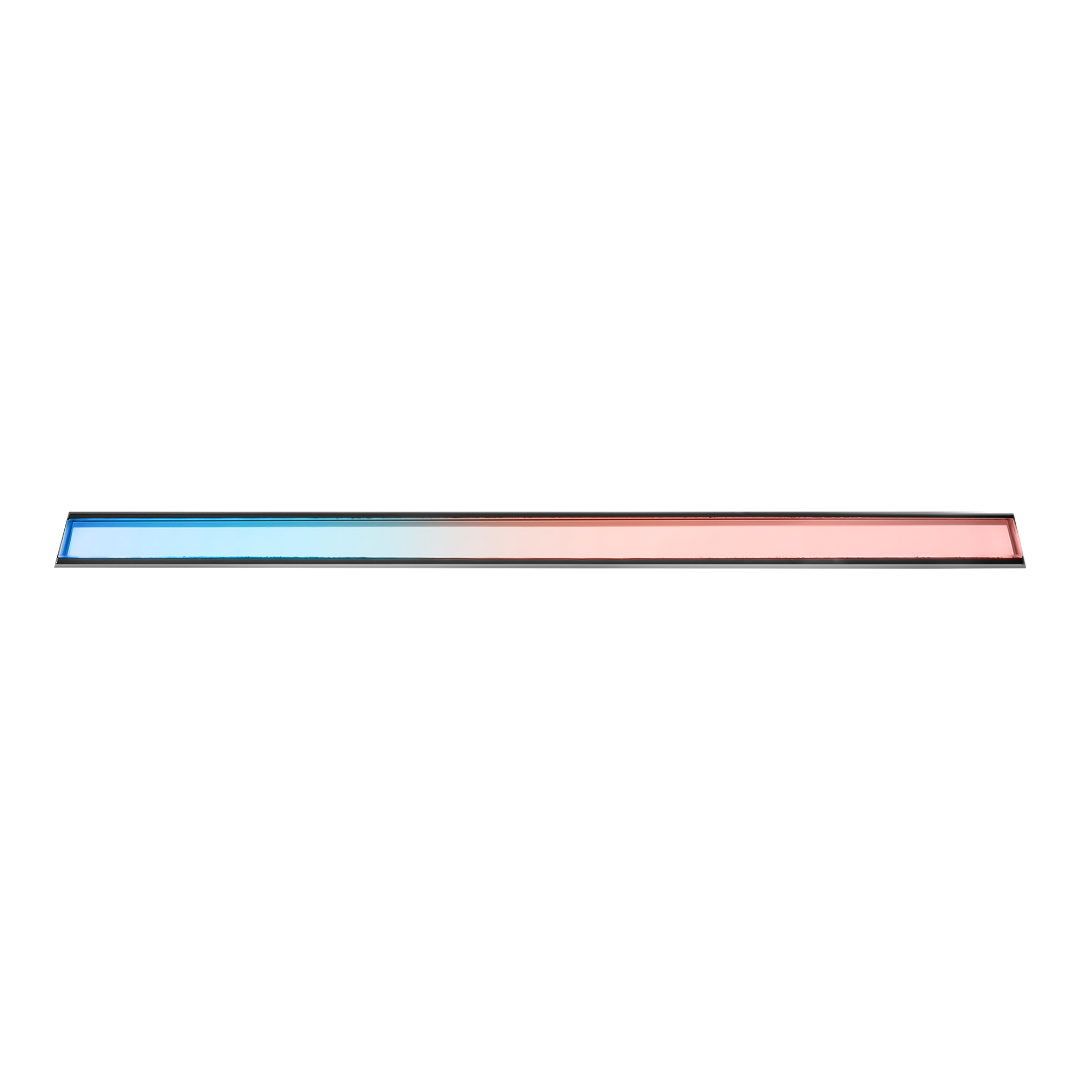

506x80x131 mm / 19.9x3.1x5.16" (Moled Graphic 20)

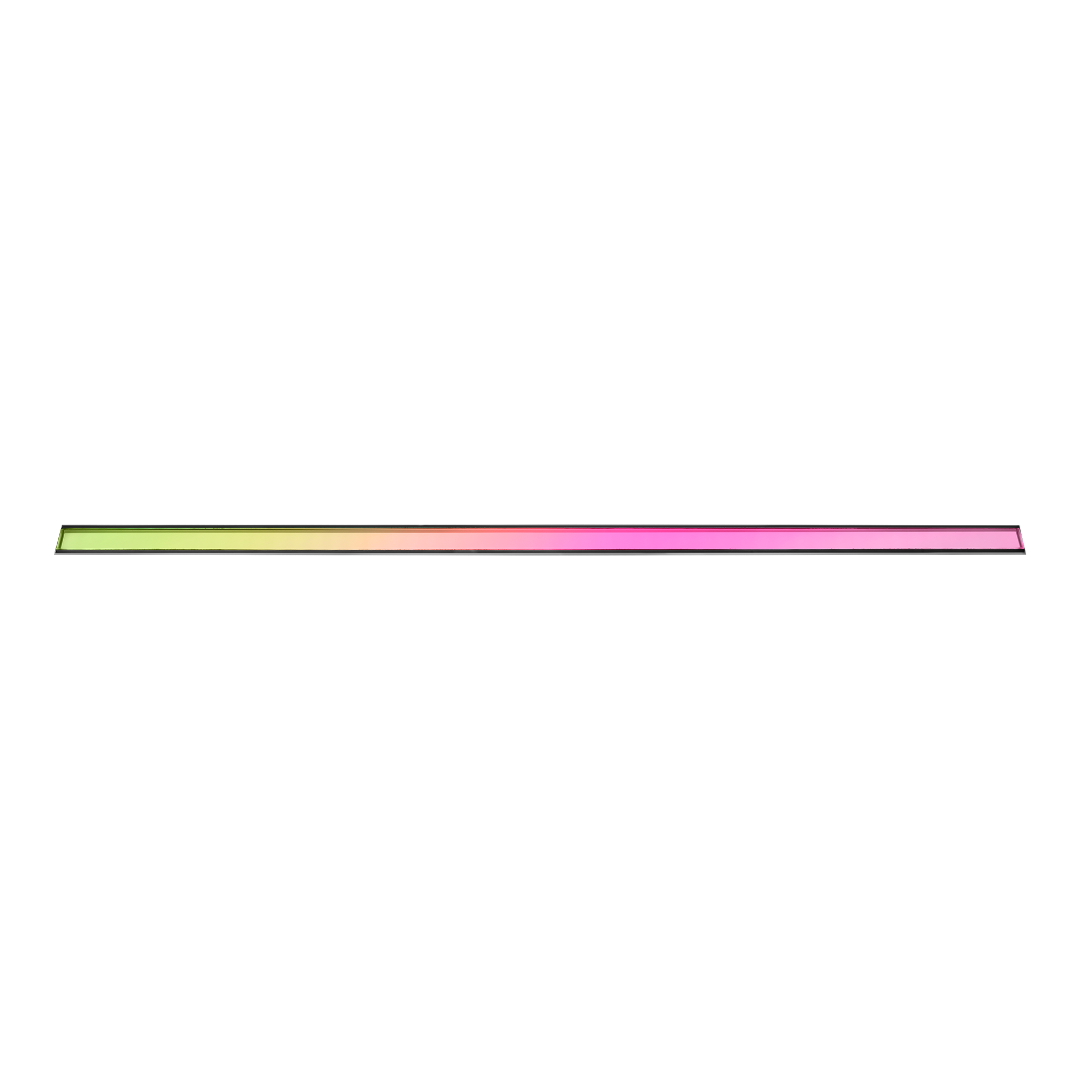

1006x80x131 mm / 39.6x3.1x5.16" (Moled Graphic 40)
Enabling an endless layout of patterns and graphics display
Extremely compact size and lightweight manageability
Available either with 20 or 40 independent RGBW LEDs

Moled Graphic RGBW

General Features

MOLED GRAPHIC RGBW is a high impact linear proﬁle for decorative and signalling in-ground use outdoors and indoors. Fitted with 20 or 40 independent RGBW LEDs, MOLED GRAPHIC RGBW can enable an endless layout of patterns and graphics displays. The combination of premium class RGBW LEDs, featuring 4000K natural white, delivers the widest range of warm white shades and pastel tones assortment. Featuring extremely compact size and lightweight manageability, MOLED GRAPHIC RGBW is equipped with 19 mm thick tempered glass and AISI 316L stainless steel housing. This high-build standard housing is further strengthened by a special micro shot-peening treatment to make the light line homogeneous and the surface shock-resistant.

Colour configuration

High brightness RGBW LEDs

Optical configuration

Opaline glass

Input voltage

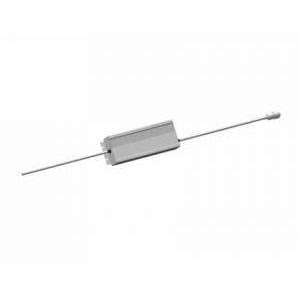

Main unit 48VDC. IP67 separate transformer 100-277VAC / 50-60Hz

Power consumption

18W/m

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

2-year warranty

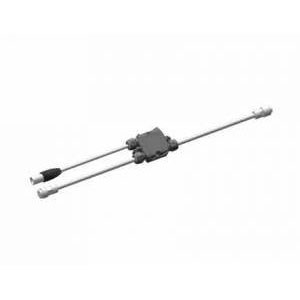

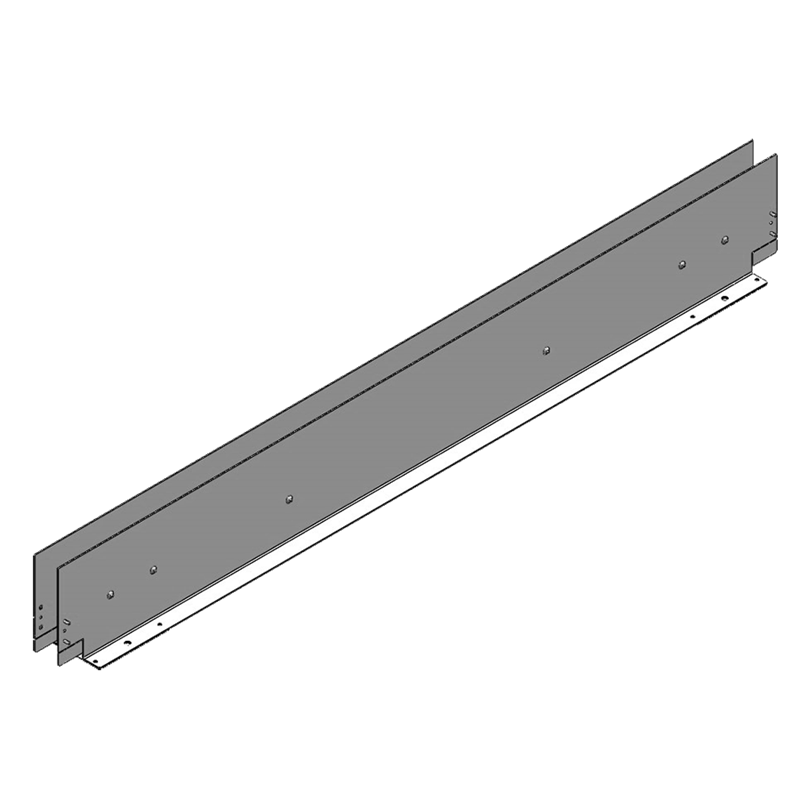

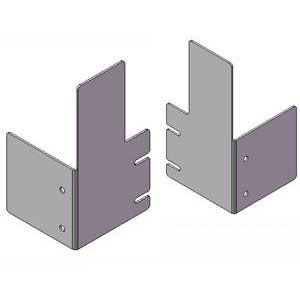

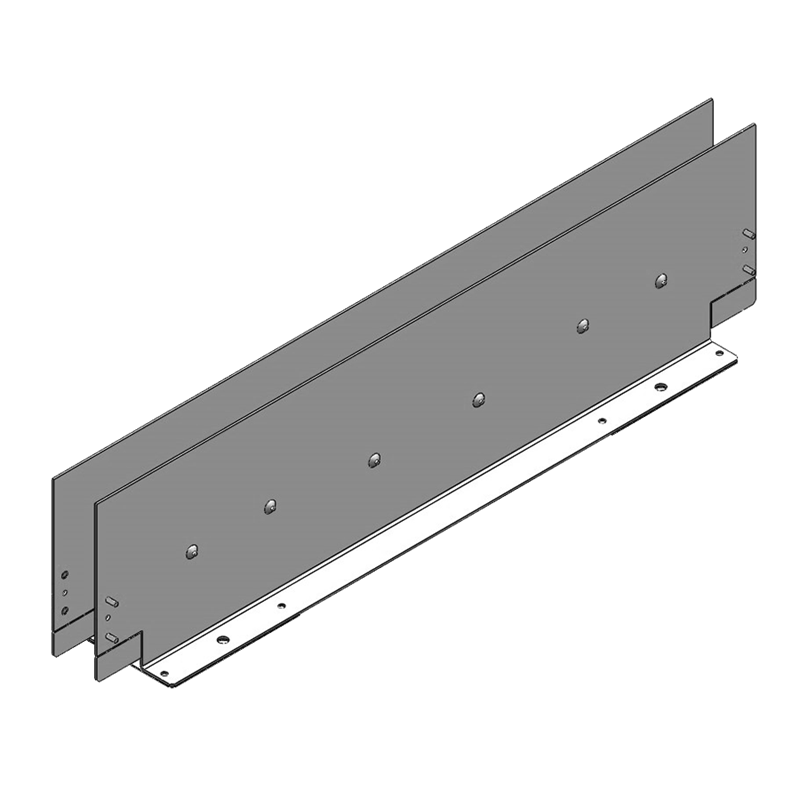

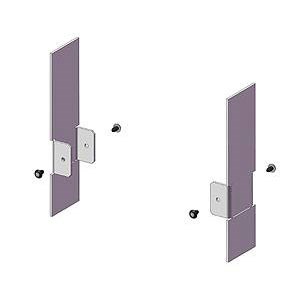

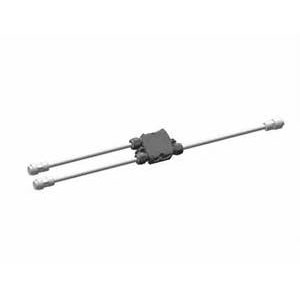

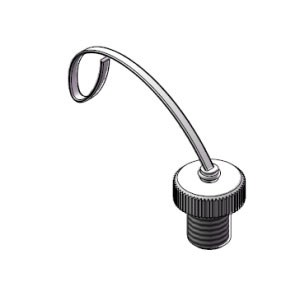

Accessories

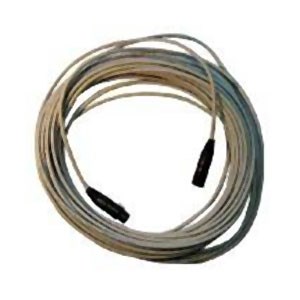

Unless an RDM compatible control is used, one Weezerd 1 AL2660 must always be purchased for one or more DMX/RDM version units in order to set their DMX address.
