Moled Graphic White Light

AL4367
AL4368

  • High impact linear profile for decorative and signalling in-ground use

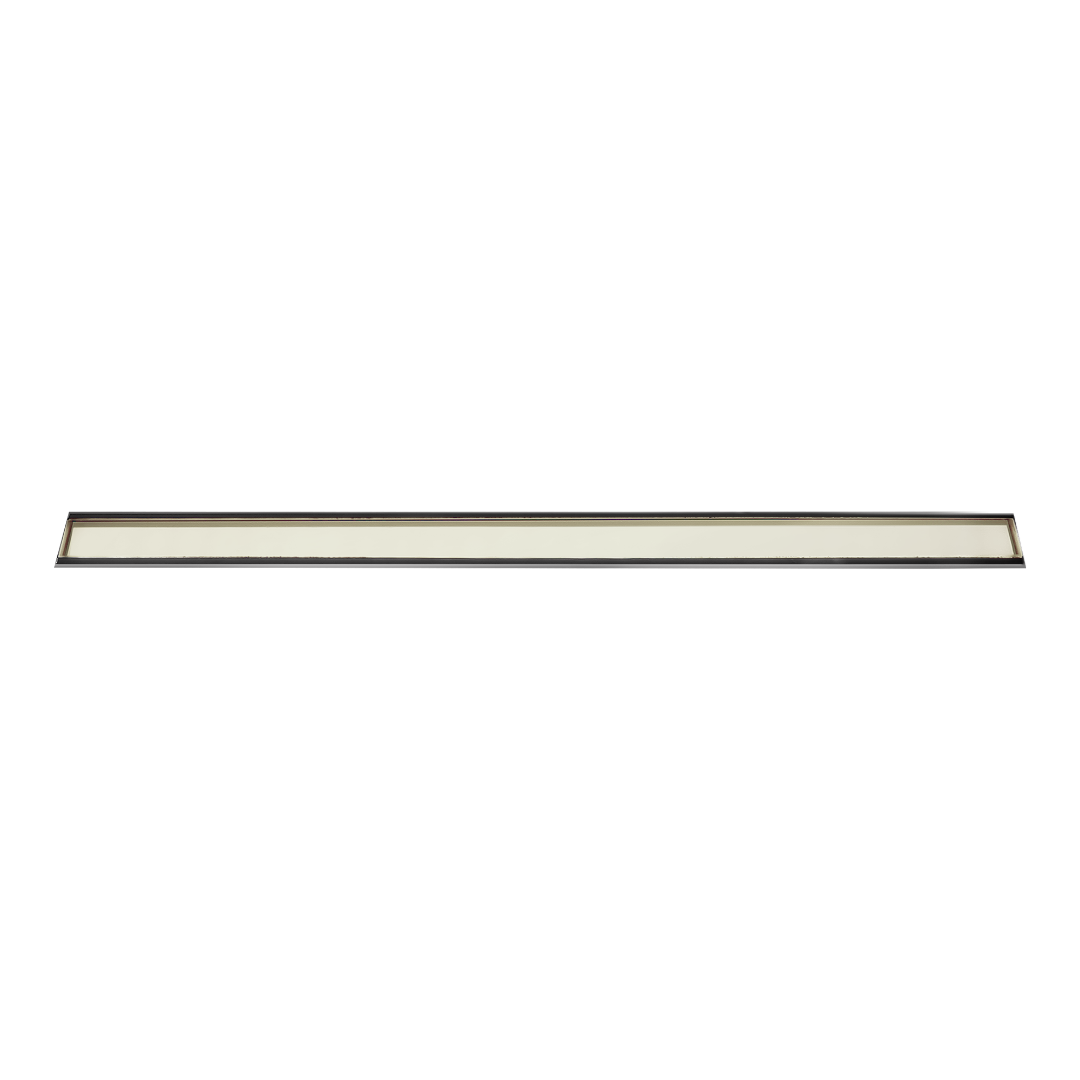

  • 506x80x131 mm / 19.9x3.1x5.16" (Moled Graphic 20)

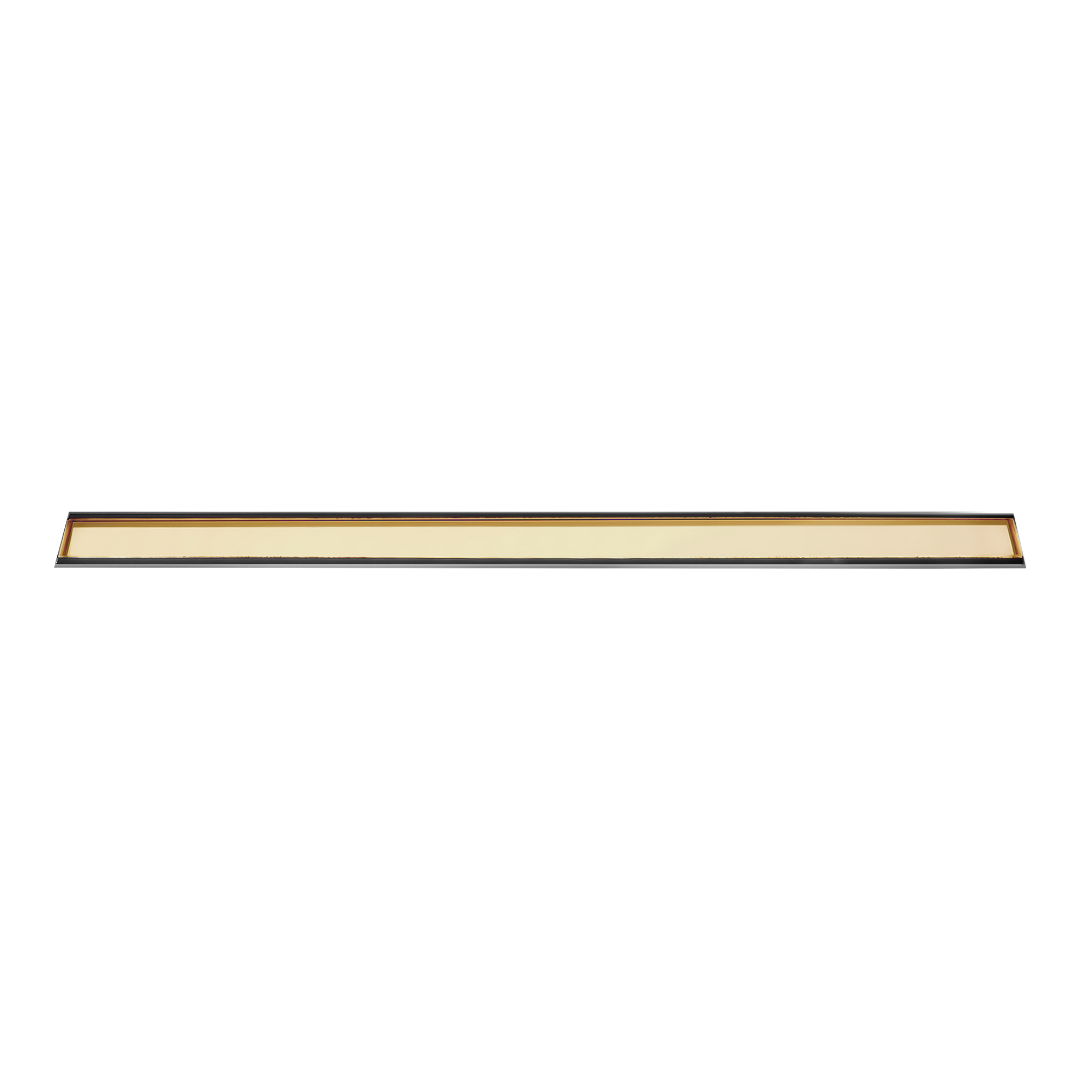

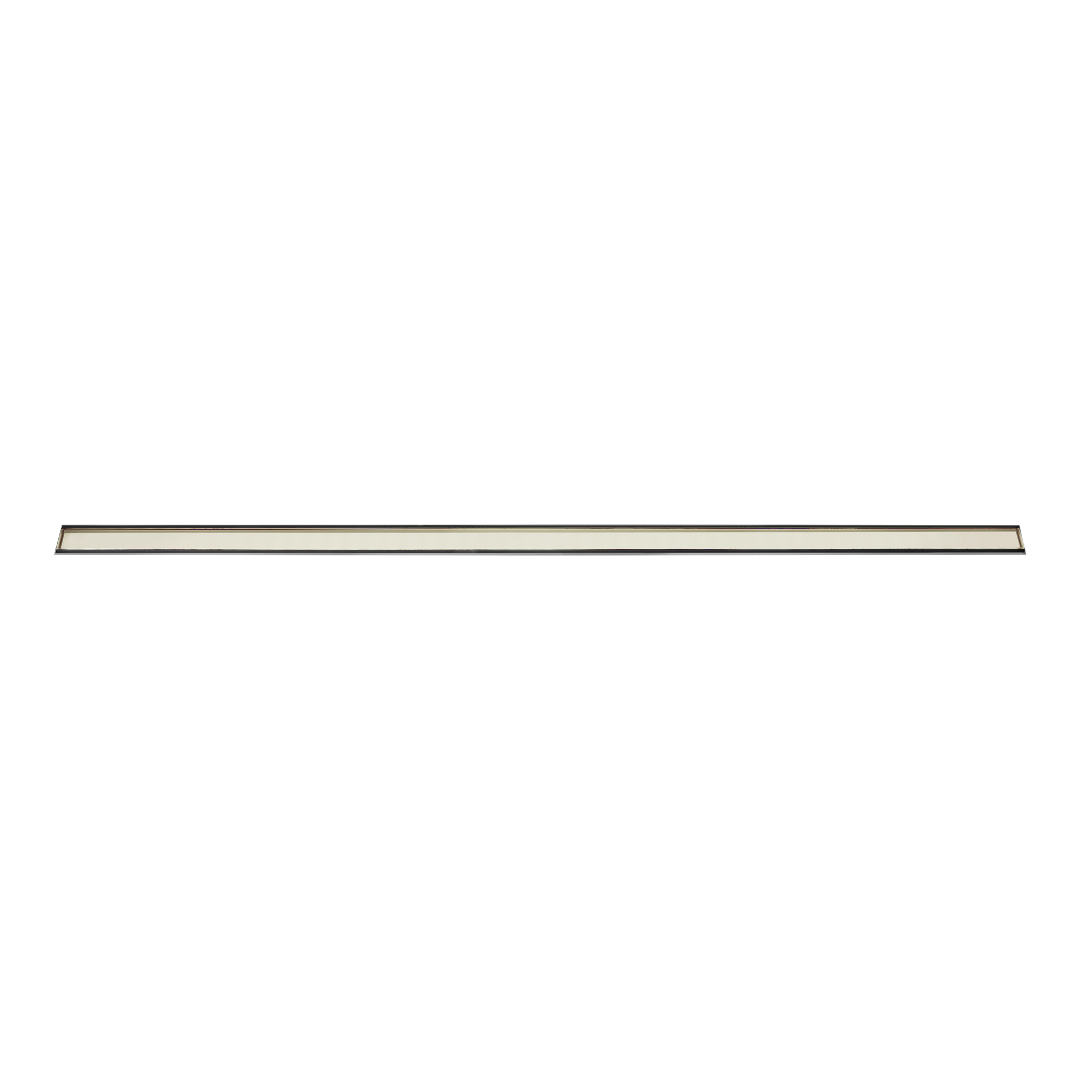

  • 1006x80x131 mm / 39.6x3.1x5.16" (Moled Graphic 40)
  • Enabling an endless layout of patterns and graphics display
  • Extremely compact size and lightweight manageability
  • Available either with 20 or 40 independent white LEDs

View LED colour configuration: Cold White 6500K
  • Cold White 6500K
  • Natural White 4000K
  • Warm White 3000K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

MOLED GRAPHIC W is a high impact linear profile for decorative and signalling in-ground use outdoors and indoors. Fitted with 20 or 40 independent cold, natural or warm white, and, on request, monochrome LEDs. MOLED GRAPHIC W can enable an endless layout of patterns and graphics displays. Featuring extremely compact size and lightweight manageability, MOLED GRAPHIC W is equipped with 19 mm thick tempered glass and AISI 316L stainless steel housing. This high-build standard housing is further strengthened by a special micro shot-peening treatment to make the light line homogeneous and the surface shock-resistant.
Colour configuration
High brightness Cold White, Natural White, Warm White or, on request, monochrome power LEDs.
Optical configuration
Opaline glass
Input voltage
Main unit 48VDC. IP67 separate transformer 100-277VAC / 50-60Hz
Power consumption
18W/m
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
2-year warranty
Accessories
Unless an RDM compatible control is used, one Weezerd 1 AL2660 must always be purchased for one or more DMX/RDM version units in order to set their DMX address.

Light Beam Effects

  • Opaline glass


Overview

  • IP67
  • IK09
  • DMX
  • Independent pixels
  • Self-addressing
  • III
  • Meets CE safety standards, Rohs compliant

Optional Features

  • CSA certified version available on request
