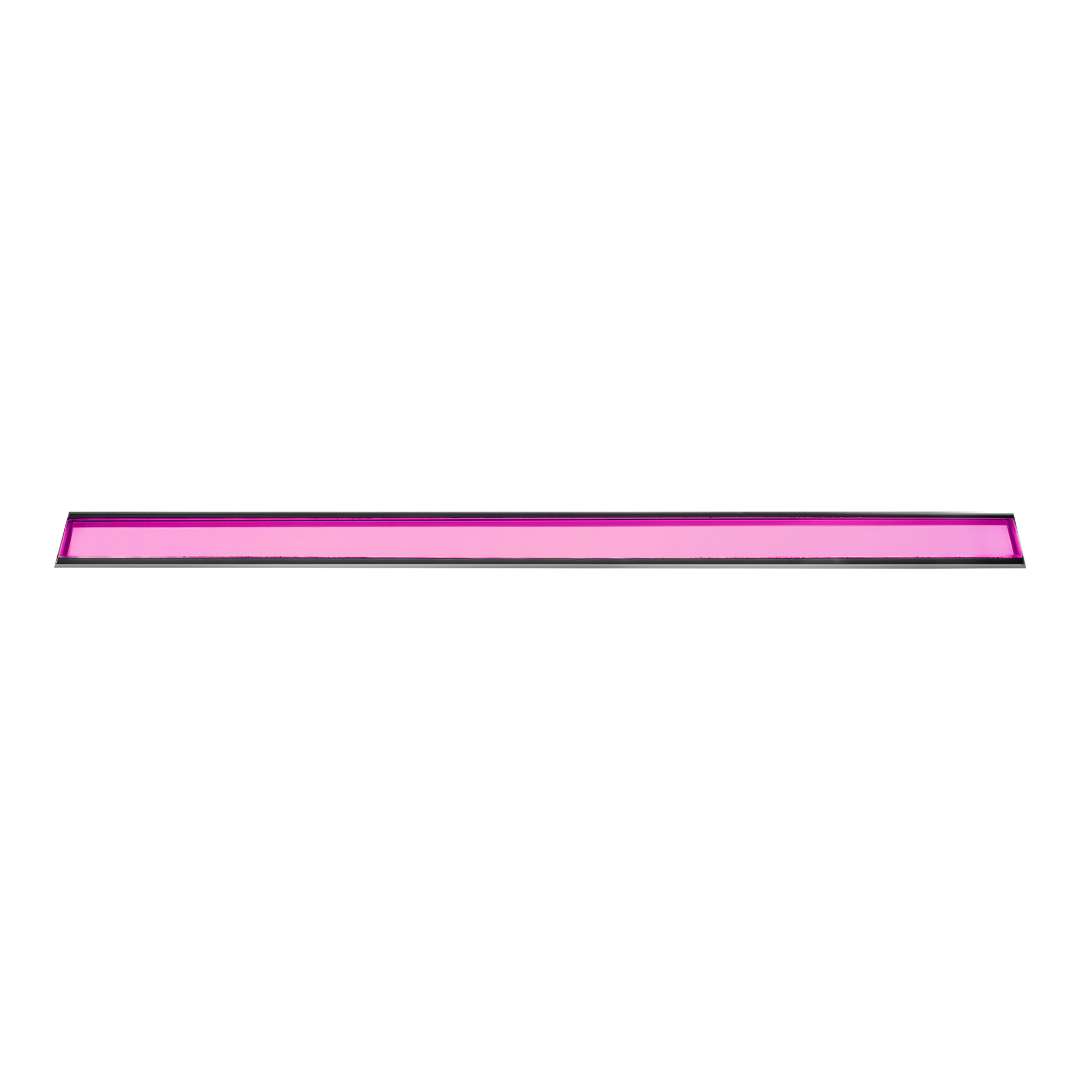

Moled 25 RGB

AL4369

Ultra-thin, recessed linear module
506x80x131 mm / 20x3x5.2"
Decorative and functional pathways signalling
Suitable for in-ground applications in pedestrian areas
50 RGB multichip LEDs per metre
Please note that the formwork needs to be purchased separately

Moled 25 RGB

General Features

Suitable for in-ground applications in pedestrian areas, MOLED 25 RGB provides micro-shaped linear solutions for pathways signalling, parks and public spaces enhancement, where the IP67 rating, in a seamless ﬂush-mount, robust and stylish module, guarantees enduring exterior performance. MoLED 25 RGB, with a density of 50 RGB multichip LEDs per metre, is a 50.6 cm long module equipped with a 19 mm thick tempered opaline glass for a smoother light diffusion. Combinations of multiple modules can be comfortably set-up with invariable pixel pitch for a uniform visual pattern layout also with angle installations. Available in DMX-RDM and self-addressing versions.

Colour configuration

High brightness RGB multichip LEDs

Optical configuration

Tempered opaline glass for a smooth light diffusion

Input voltage

External power supply unit: 48 V DC

Power consumption

9W (18W/m)

Ingress protection rating

IP67

Impact resistance rating

IK09

External operating limits

-40°C to 50°C / (-40°F to 122°F)

Warranty

2-year warranty

Accessories

Unless an RDM compatible control is used, one Weezerd 1 AL2660 must always be purchased for one or more DMX/RDM version units in order to set their DMX address.
