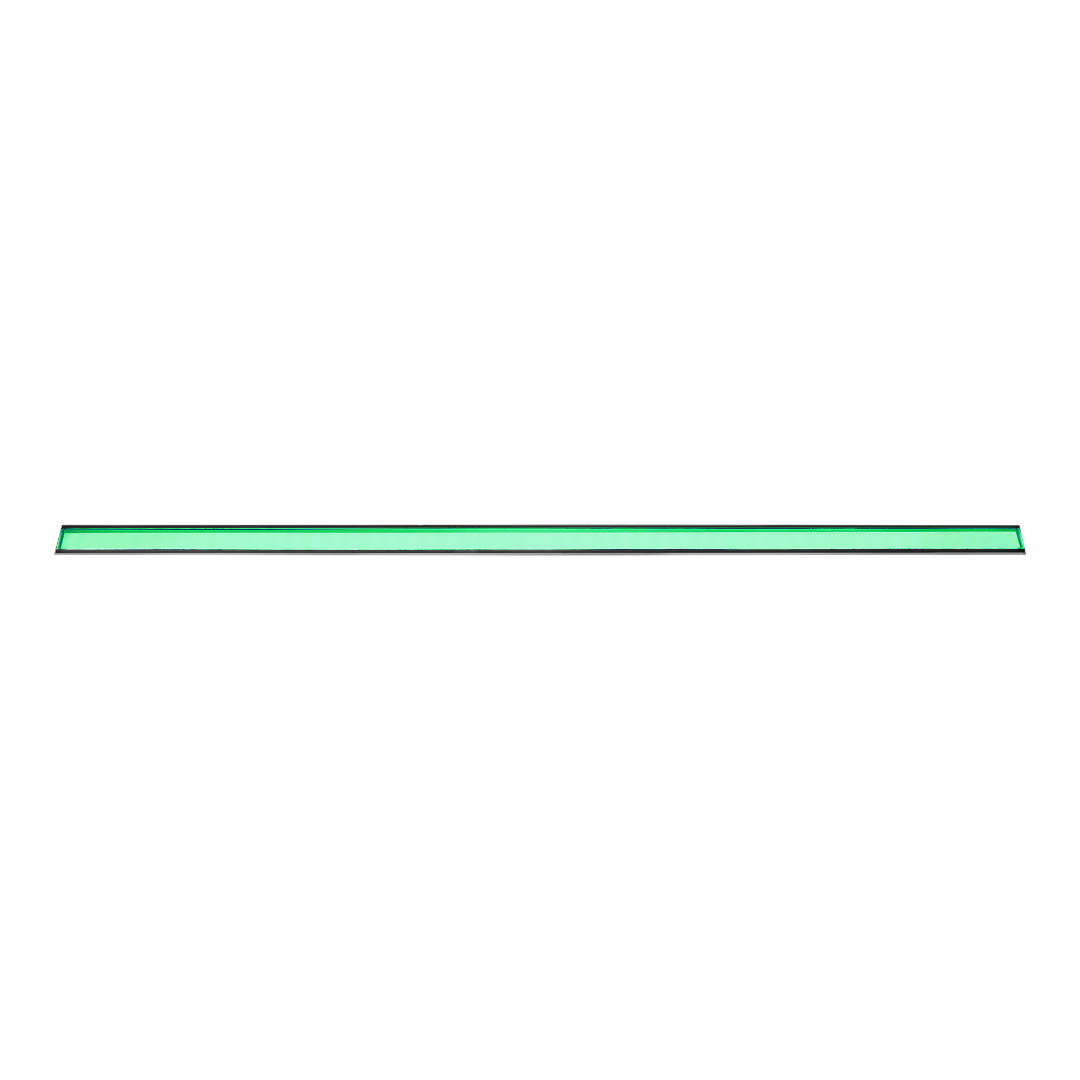

Moled 50 RGB


  • Ultra-thin, recessed linear module
  • 1006x80x131 mm / 40x3x5.2"
  • Decorative and functional pathways signalling
  • Suitable for in-ground applications in pedestrian areas
  • 50 RGB multichip LEDs per metre
  • Please note that the formwork needs to be purchased separately

Contact us  Save product

General Features

Suitable for in-ground applications in pedestrian areas, MOLED 50 RGB provides micro-shaped linear solutions for pathways signalling, parks and public spaces enhancement, where the IP67 rating, in a seamless flush-mount, robust and stylish module, guarantees enduring exterior performance. MoLED 50 RGB, with a density of 50 RGB multichip LEDs per metre, is a 100.6 cm long module equipped with a 19 mm thick tempered opaline glass for a smoother light diffusion. Combinations of multiple modules can be comfortably set-up with invariable pixel pitch for a uniform visual pattern layout also with angle installations. Available in DMX-RDM and self-addressing versions.
Colour configuration
High brightness RGB multichip LEDs
Optical configuration
Tempered opaline glass for a smooth light diffusion
Input voltage
External power supply unit: 48 V DC
Power consumption
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
2-year warranty
Unless an RDM compatible control is used, one Weezerd 1 AL2660 must always be purchased for one or more DMX/RDM version units in order to set their DMX address.

Light Beam Effects

  • Opaline glass


  • IP67
  • IK09
  • DMX
  • RDM
  • Self-addressing
  • III
  • Walk-over
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request
