Moon Marine White Light

AL5309
AL5327

  • Max. delivered lumen output: 840 lm / 120 lm/W
  • Size: (HxWxD) 90x69x127 mm / 3.5x2.7x5"
  • Control system: DALI, ON-OFF, 0-10V
  • Corrosion resistant coastal lights specific for the enhancement of landscape and architectural details in marine environments

View LED colour configuration: 40 Natural White 4000K
  • 40 Natural White 4000K
  • 30 Warm White 3000K
  • 27 Warm White 2700K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

Engineered to enhance landscape and architectural details in residential or commercial areas located at the seaside, Moon Marine W is an innovative LED luminaire capable of creating intense emotions through soft lighting effects in different shades of white light ranging from 2700K to 4000K. Built from corrosion resistant materials, either brass or AISI 316L stainless steel, this coastal light is resistant against humidity and saltwater ensuring maximum installation durability. Owing to its extreme flexibility, high aesthetic impact, and minimal size, Moon Marine W is the perfect solution for both decorative and functional illumination of paths, walkways, gardens, as well as architectural details. Fitted with an external PSU and a robust fixing bracket, Moon Marine W features five different optics, from ultra spot to extra wide, for the creation of diversified visual effects.
Colour configuration
High brightness 2700K, 3000K and 4000K White or, on request, monochrome COB LEDs (mid-power LEDs in the Ultra Spot version)
Optical configuration
6° US (Ultraspot)
18° NA (Narrow)
25° ME (Medium)
35° WI (Wide)
50° EW (Extrawide)
Max. Delivered lumen output
839 lm
Max. lumen/Watt
120 lm/W
Input current
250mA, US (Ultraspot) 800mA
Power consumption
US (Ultraspot) 2.7W, 7W
Ingress protection rating
IP67
Impact resistance rating
IK08
External operating limits
-40°C to 40°C / (-40°F to 104°F)
Electropolishing
Optional electropolishing treatment available for the stainless steel version for an aesthetically appealing product finishing
Clear Coating
Optional clear coating available for the brass version to protect the fixture against outdoor fading and tarnishing
Warranty
5-year warranty
Accessories

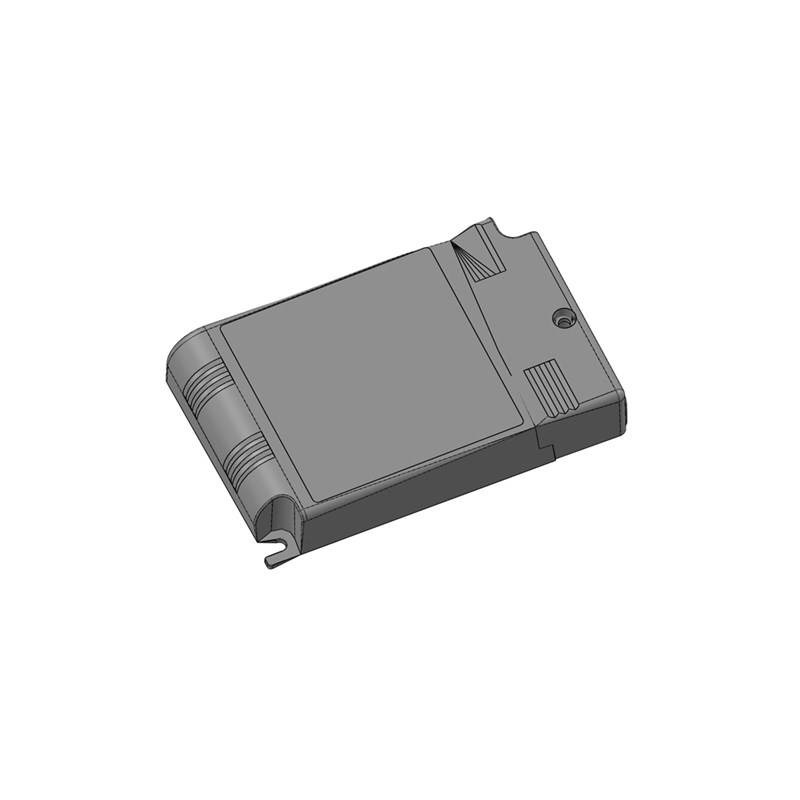

Optional optical accessory available for the utmost design flexibility. Remote power supply unit to be ordered separately.

Light Beam Effects

  • Ultra Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide


Overview

  • IP67
  • IK08
  • DALI
  • 0-10V
  • Antisaline
  • III
  • Meets CE safety standards, Rohs compliant

Optional Features

  • ETL pending
  • Electropolishing
  • Beehive filter
  • Clear Coating
