  • Max. delivered lm output: 607 lm / 32 lm/W  (clear resin optics)
  • Size: 1220x20x26 mm / 48x48x0.79x1.02"
  • Control system: DMX-RDM, ON-OFF, self-addressing, independent pixels, remote wireless data
  • Micro-sized linear module for creative accent and linear lighting design ideal for installation in reduced mounting spaces

Contact us  Save product

General Features

Available with either clear or opaline resin reflector, nanoPARADE 4 RGBW is an ultra compact aluminium linear profile featuring on-board electronics, extreme thinness, and lightweight manageability. Fitted with a separate power supply unit, it is the ideal solution for easy outdoor installation on balconies, windows or façades where a reduced mounting space drastically limits the range of suitable products. With an optimal light output efficacy, more units can comfortably be set-up in continuous end-to-end installation for creative wall grazing effects with a uniform visual layout. Featuring independent control of one-foot-long pixel clusters, its standard configuration can be easily managed via RDM for the creation of eye-catching lighting shows through the dynamic rendering of any graphic pattern or animation. The combination of RGB+W 4000K LEDs, that provides an unprecedented astonishing white light output quality plus a wide variety of intermediate colour hues, offers the maximum lighting design flexibility.
Colour configuration
High brightness RGB+W 4000K mid-power LEDs
Optical configuration
Max. Delivered lumen output
607 lm
Max. lumen/Watt
32 lm/W
Input voltage
24 VDC
Power consumption
0.80A@24VDC / 19W
DMX Wireless
External DMX wireless system available on request
Ingress protection rating
Impact resistance rating
External operating limits
-20°C to 50°C / (-4°F to 122°F)
5-year warranty

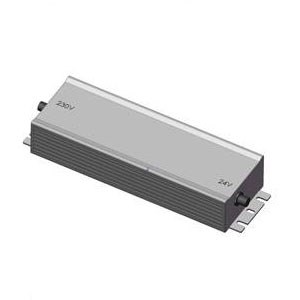

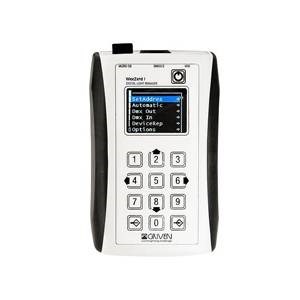

Dedicated start lines are required to allow seamless and safe connections. Unless an RDM control is used, nanoPARADE must always be purchased with one AL2660 WeeZerd 1 to set its DMX address. Adjustable fixing bracket and external power supply unit are available (to be purchased separately).

Light Beam Effects

  • Clear resin
  • Opaline resin


  • IP67
  • IK10
  • DMX
  • RDM
  • Independent pixels
  • Self-addressing
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • External Wireless Data
  • ETL certified version available on request
