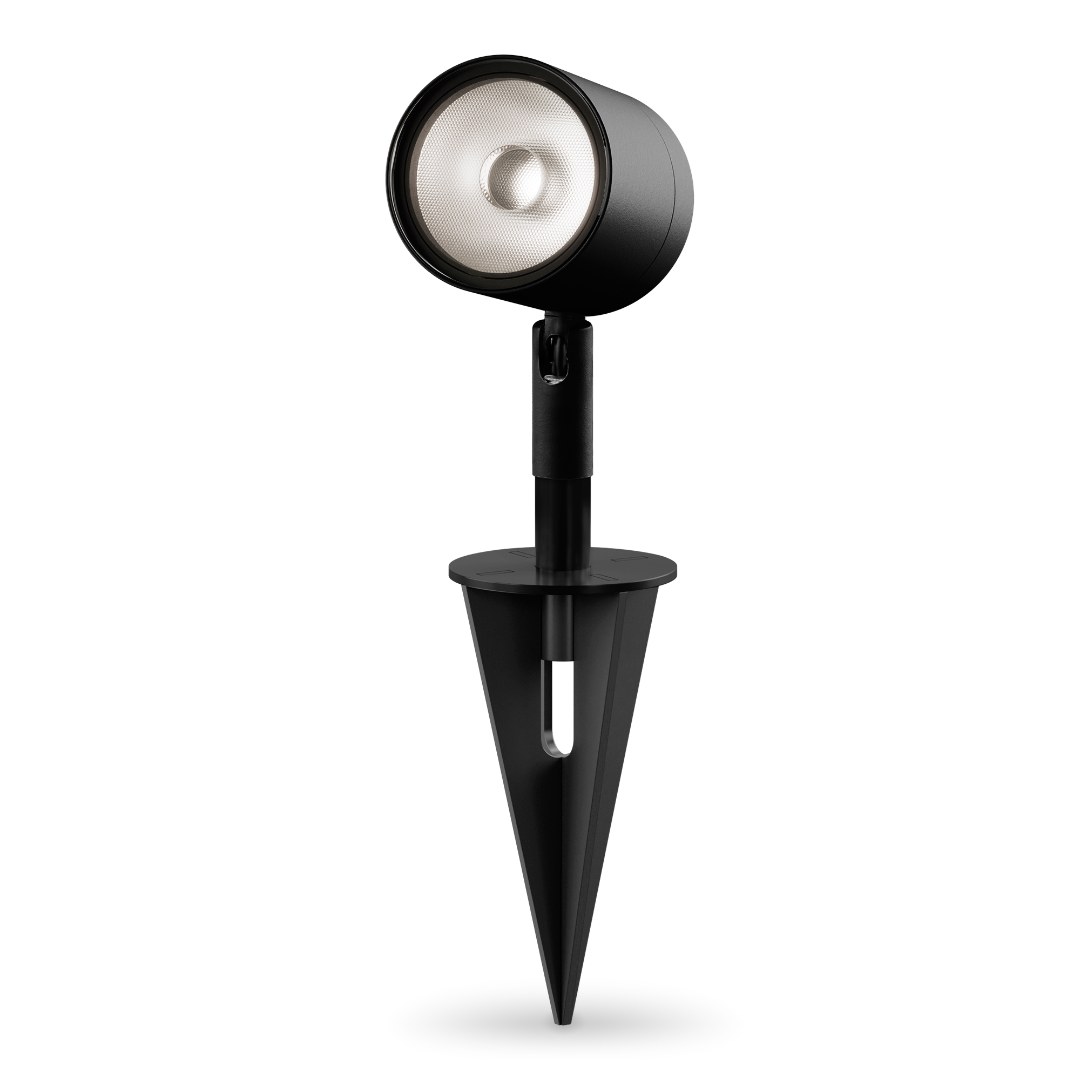

Moon spike White Light


  • Max. delivered lumen output: 1499 lm / 120 lm/W
  • Size: Ø60 66x216 mm total height (102 mm spike) / Ø 2.36 2.60x8.5" total height (4" spike)
  • Control system: DALI, ON-OFF, 0-10V
  • Compact bollards specific for the enhancement of landscape and architectural details through refined accent lighting effects, fitted with a spike for direct installation in the ground.

View finishes: Black RAL 9005
  • Black RAL 9005
  • Anthracite RAL 7016
  • Grey RAL 9006
  • White RAL 9003
  • Olive Grey RAL 7002
  • Custom RAL available on request
View LED colour configuration: 40 Natural White 4000K
  • 40 Natural White 4000K
  • 30 Warm White 3000K
  • 27 Warm White 2700K
View Swivel: Brass swivel
  • Brass swivel
  • Lockable head
  • One-tone finish
Contact us  Save product

General Features

Engineered to enhance landscape and architectural details in residential or commercial areas through a refined accent lighting, Moon spike W is an innovative LED luminaire capable of creating intense emotions through soft lighting effects in different shades of white light. Owing to its extreme flexibility, high aesthetic impact and minimal size, Moon spike W is the perfect solution for both decorative and functional illumination of paths, walkways, gardens, parks, and green areas in resorts, hotel facilities, commercial structures or private houses. Available in two finishes and with a choice of six different optics for the creation of diversified visual effects, it comes with a 10 cm long spike for direct installation in the ground. Different versions feature alternatively brass swivel, one-tone finish or lockable head options for the utmost design flexibility. The external power supply unit grants the simultaneous management of multiple units.
Colour configuration
High brightness 2700K, 3000K and 4000K White or, on request, monochrome power LEDs
Optical configuration
6° US (Ultraspot) 1A - 3W
18° NA (Narrow)
25° ME (Medium)
35° WI (Wide)
50° EW (Extrawide)
22°x65° EL (Elliptical)
Max. Delivered lumen output
1499 lm
Max. lumen/Watt
120 lm/W
Input current
350mA, US (Ultraspot) 1A
Power consumption
12.5W, US (Ultraspot) 3W
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
5-year warranty
Optional optical accessory available for the utmost design flexibility. External PSU to be ordered separately.

Light Beam Effects

  • Ultra Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical


  • IP67
  • IK08
  • PWM
  • III
  • Brass swivel
  • Lockable head
  • One-tone finish
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • Corrosion resistant coating for product installation in coastal environment available on request
  • ETL pending
