Alle Produkte wandmontage ds proDS PRO

DS PRO

AL5456 DS PRO COMMERCIAL
AL5459 DS PRO RESIDENTIAL

Max. delivered lm output:
DS PRO Commercial 1399 lm / 101 lm/W
DS PRO Residential 999 lm / 101 lm/W
Size: Ø121mm 150x85 mm / Ø 4 3/4" 5 7/8"x3 3/8"
Control system: DALI-2
Versatile warm white light applique available in two versions following the DarkSky classification: Commercial (lumen output > 1000 lm) and Residential (< 1000 lm).

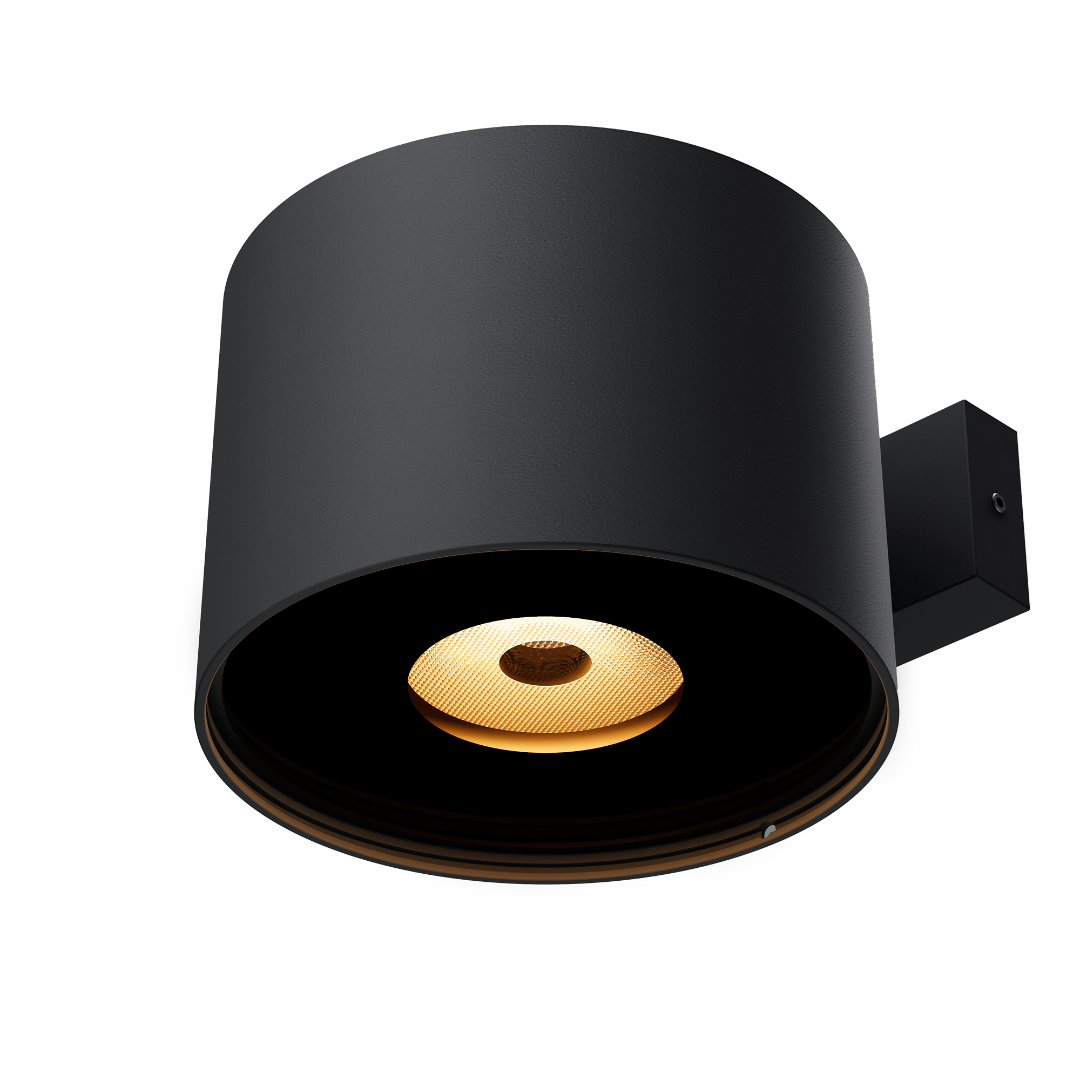

Oberflächen ansehen: Anthracite RAL 7016

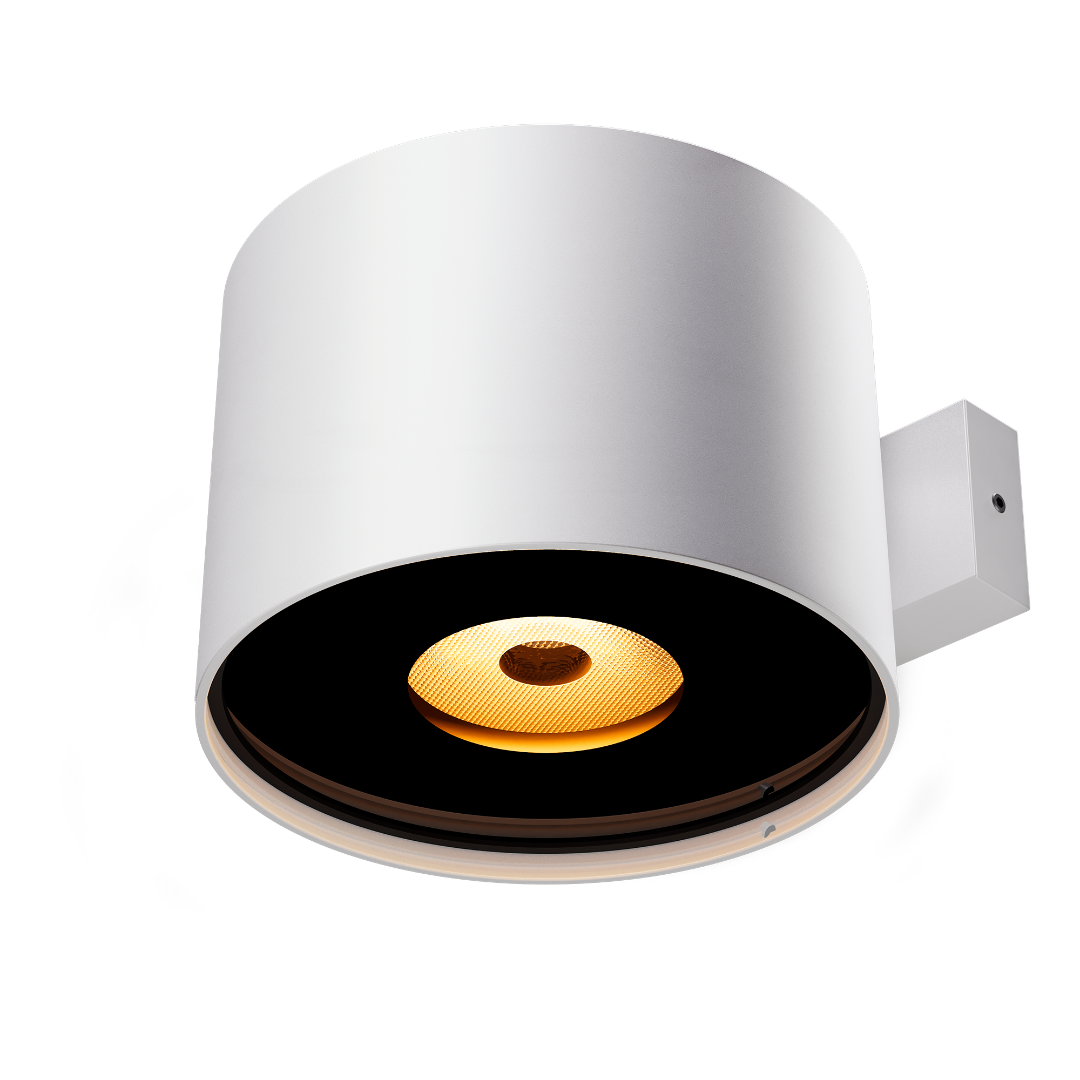

LED-Farbkonfiguration ansehen: 2200K

Swivel ansehen:

Rahmentyp ansehen:

View glass type:

Kontaktieren Sie uns Produkt speichern

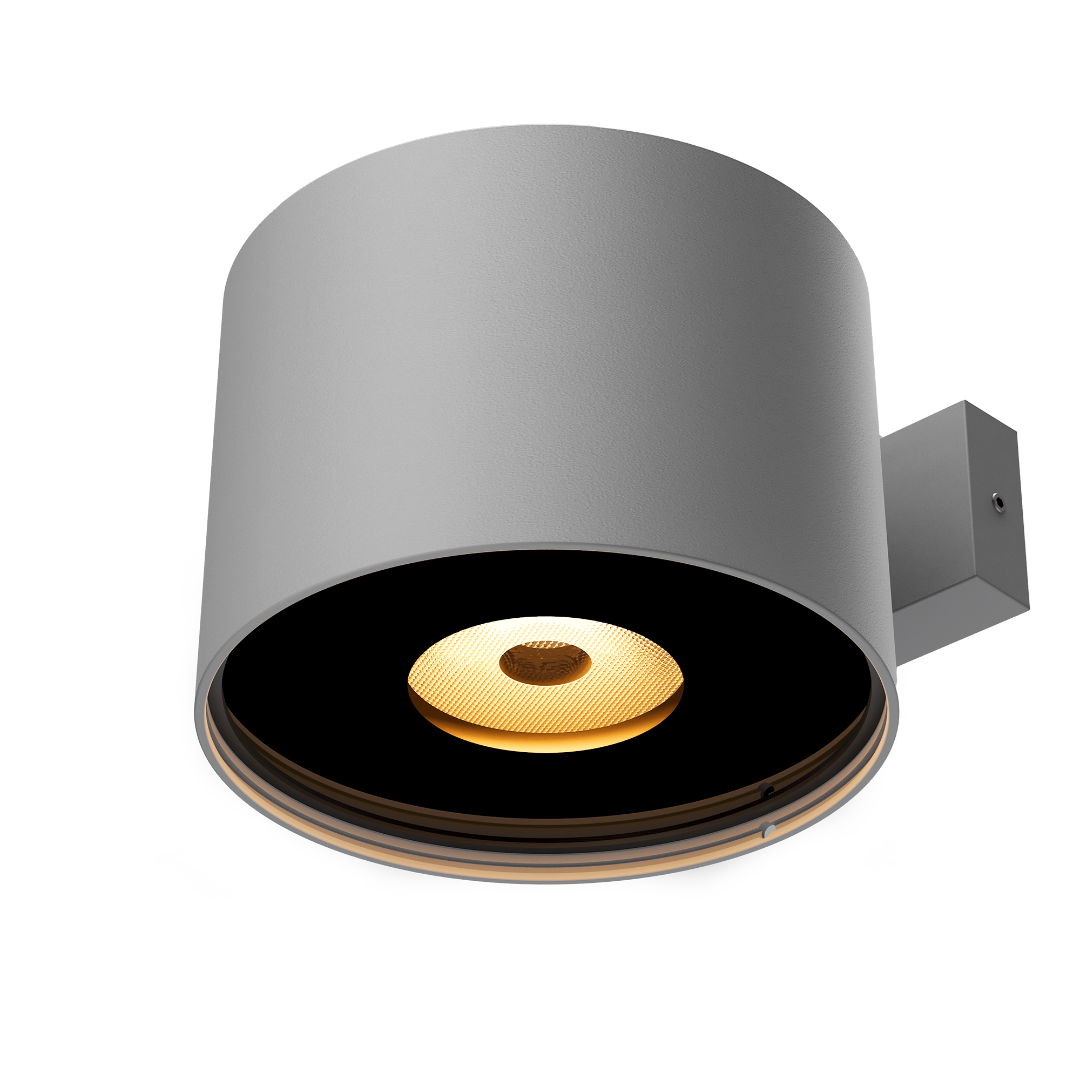

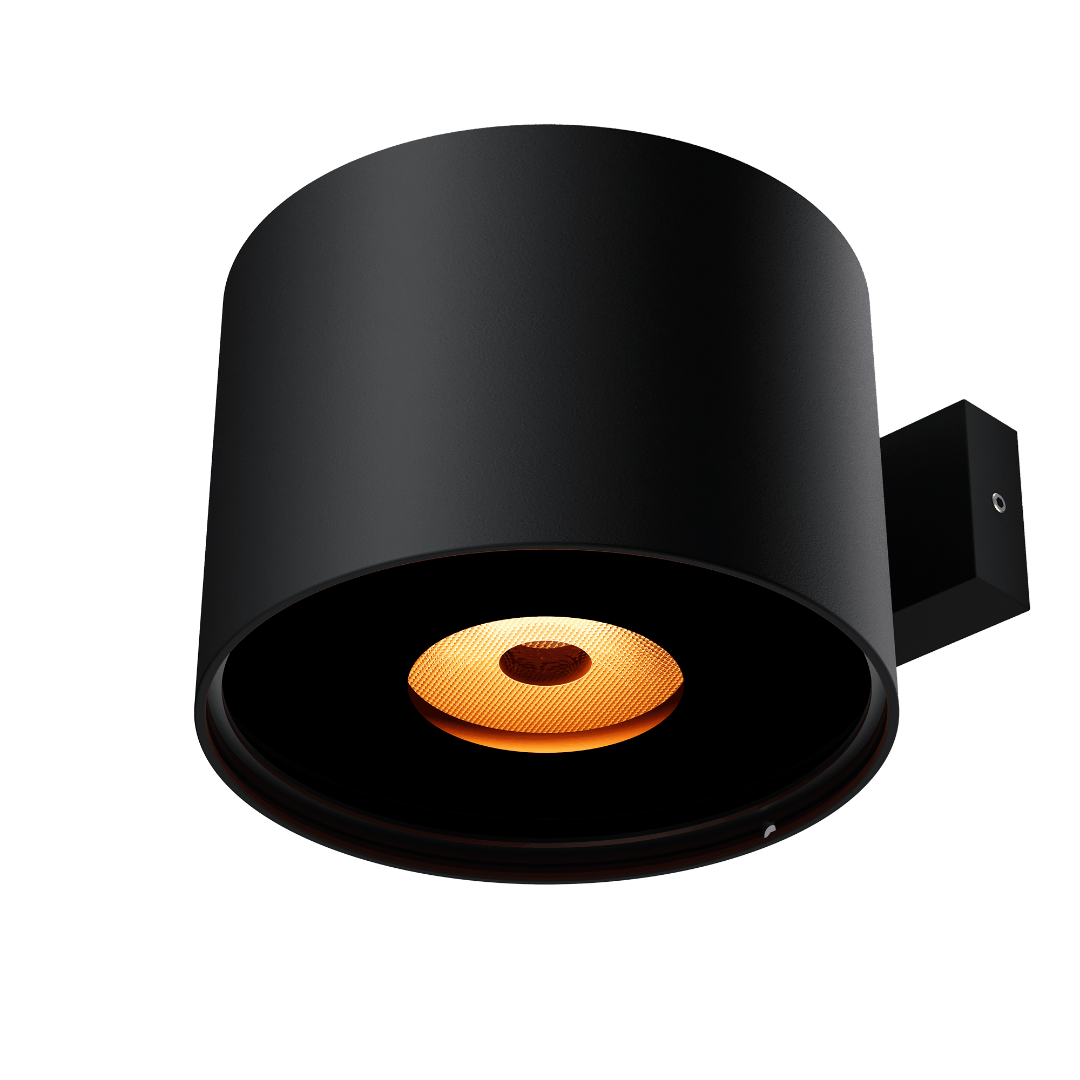

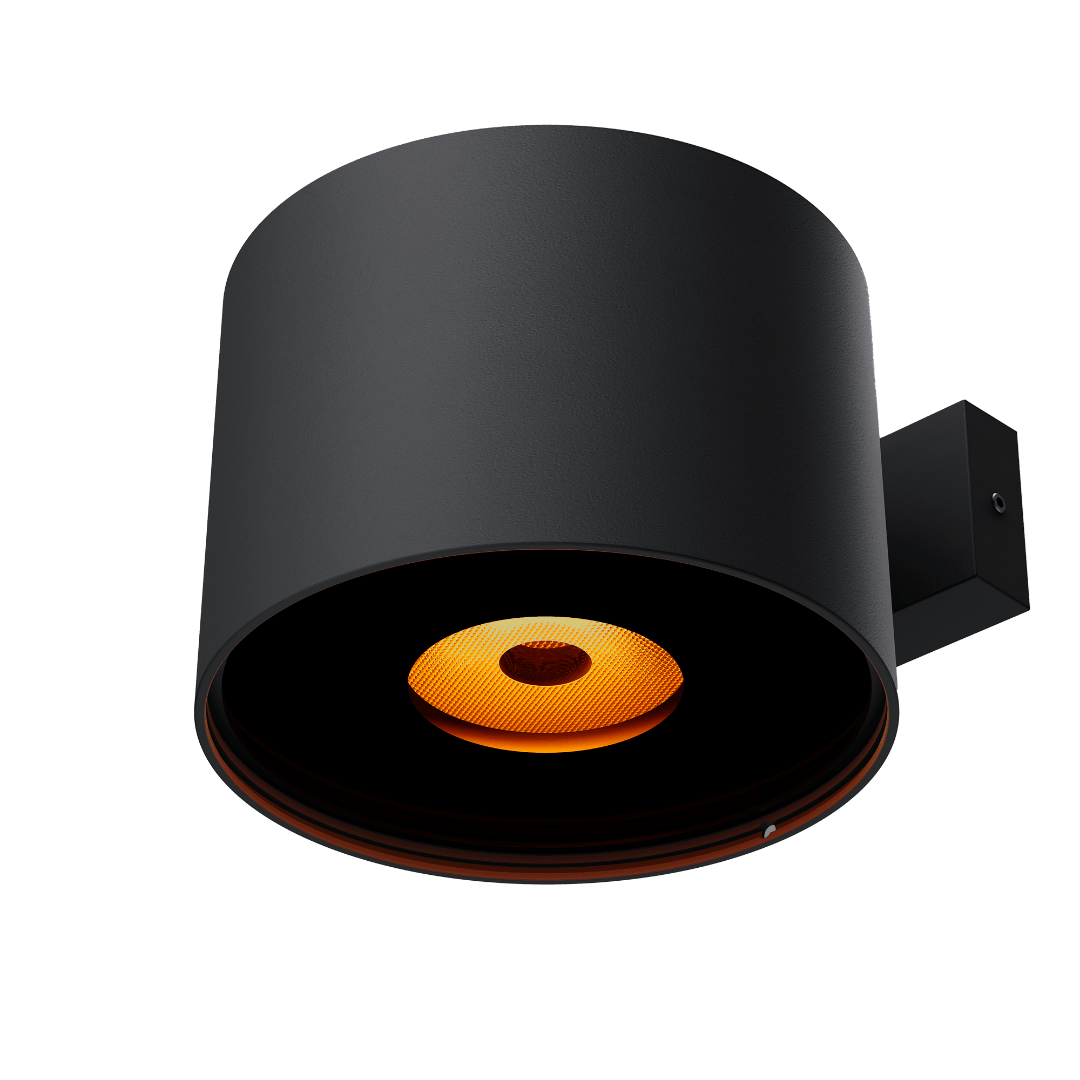

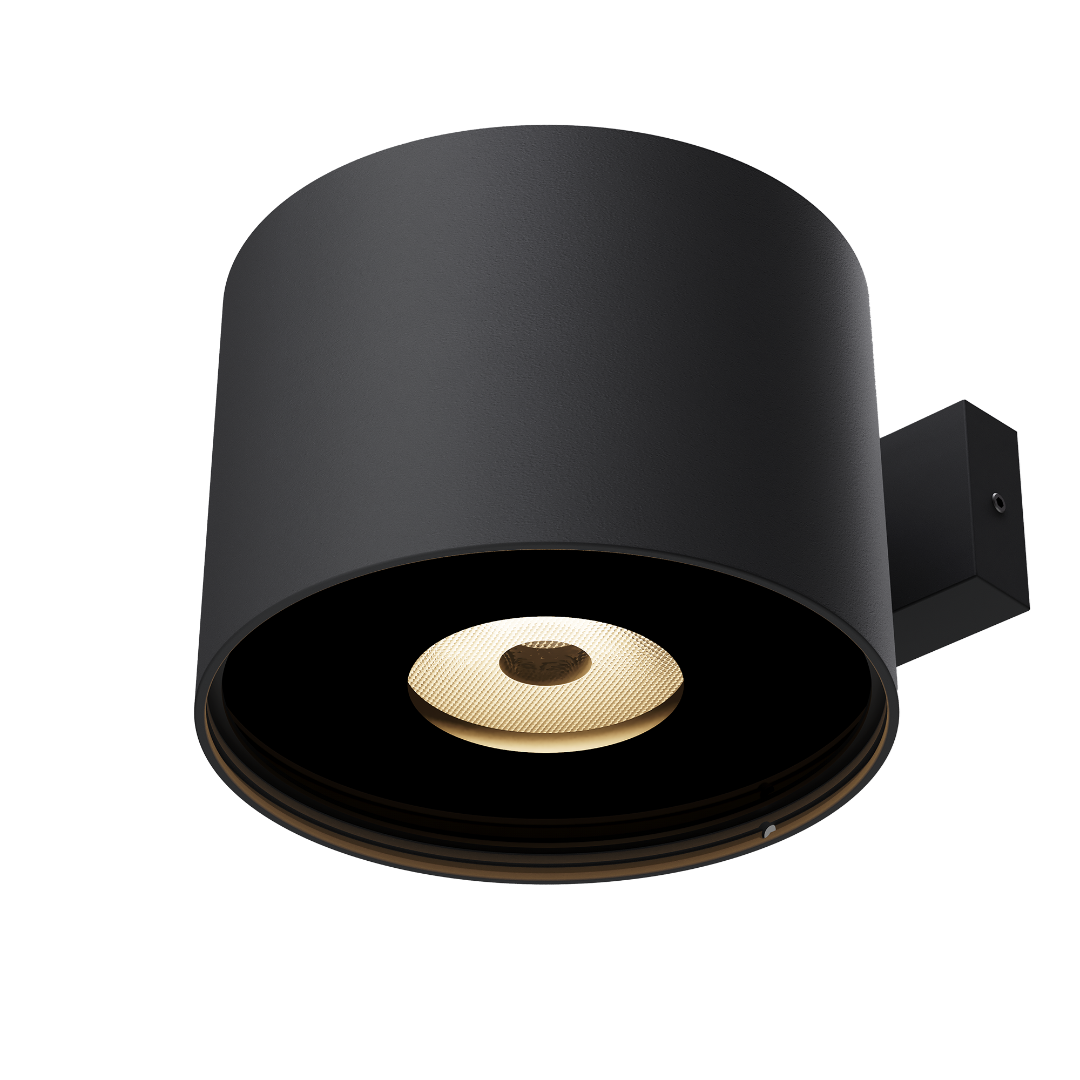

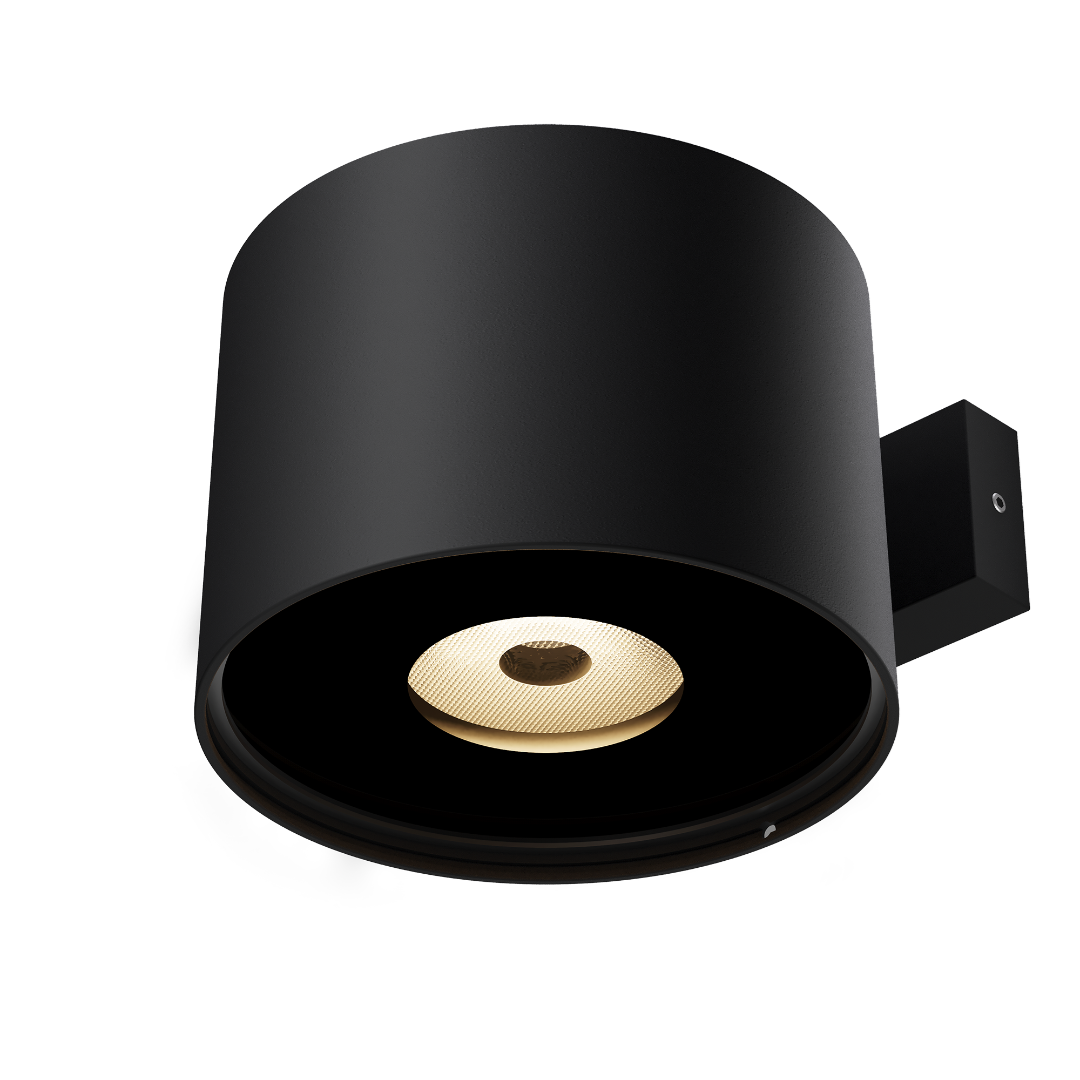

DS PRO

Allgemeine Eigenschaften

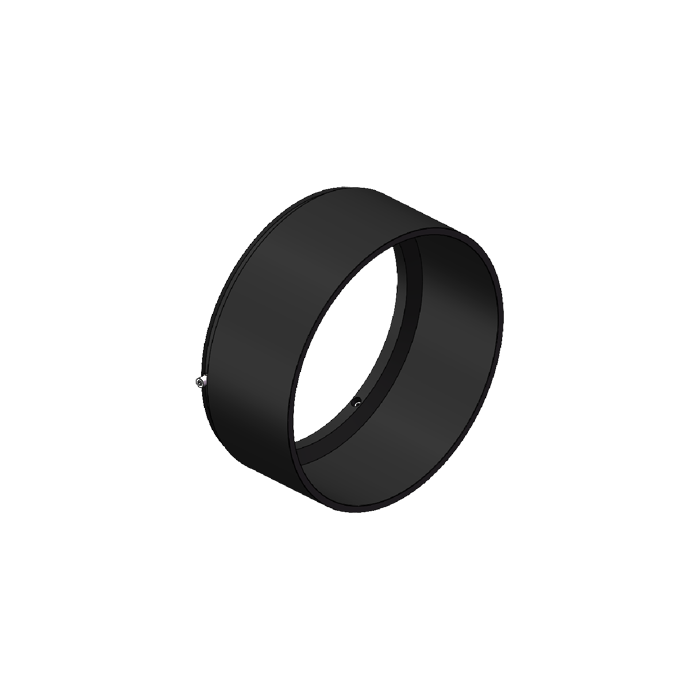

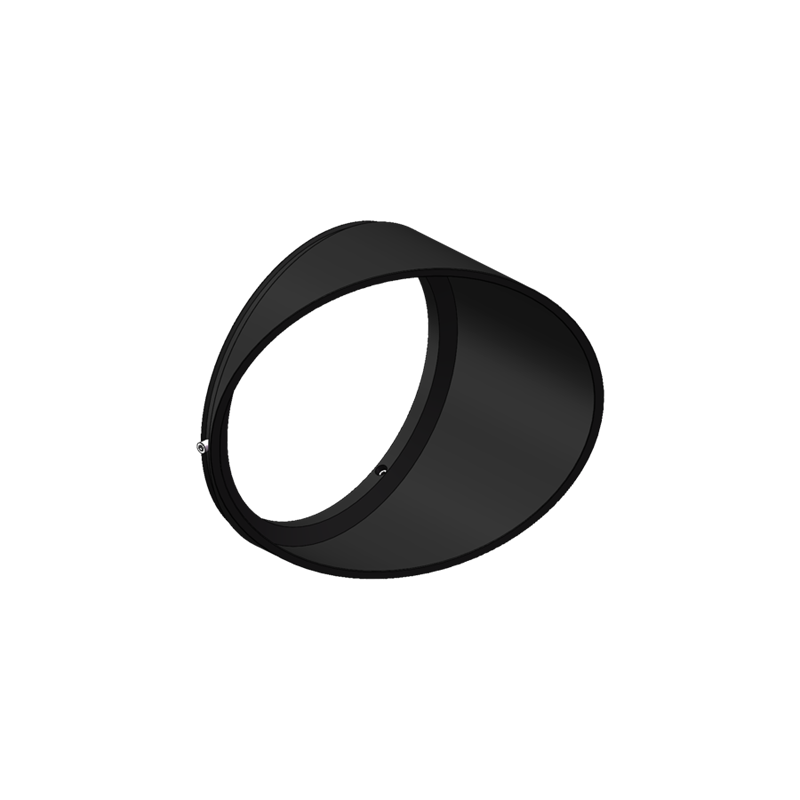

Conceived by Dark Source and Eryri National Park, DS PRO is a decorative and functional wall-mounted luminaire specific for architectural environments where precise light control and refined aesthetics are essential. Designed in accordance with DarkSky principles, it directs luminous flux with exceptional precision exclusively onto areas of interest, eliminating upward light emission to ensure visual comfort and a balanced nocturnal environment. Featuring an integrated DALI-2 dimmable driver, it is available in two versions following the DarkSky classification: Commercial (with a lumen output exceeding 1000 lm) and Residential (with an output below 1000 lm). Both configurations are available in 3000K, 2700K and 2200K warm white light, while the Residential version is additionally offered in 1800K and 1000K amber spectra for environmentally sensitive and wildlife-friendly applications. Three different installation systems can be selected: wall mounting, corner wall mounting, and linear wall mounting. An elegant lantern, available with or without a screen, expands the luminaire functional versatility. An optional PIR motion sensor, together with glare-control accessories including a visor, snoot and integrated honeycomb filter, further enhance suitability for responsible, environmentally conscious lighting applications.

Colour configuration

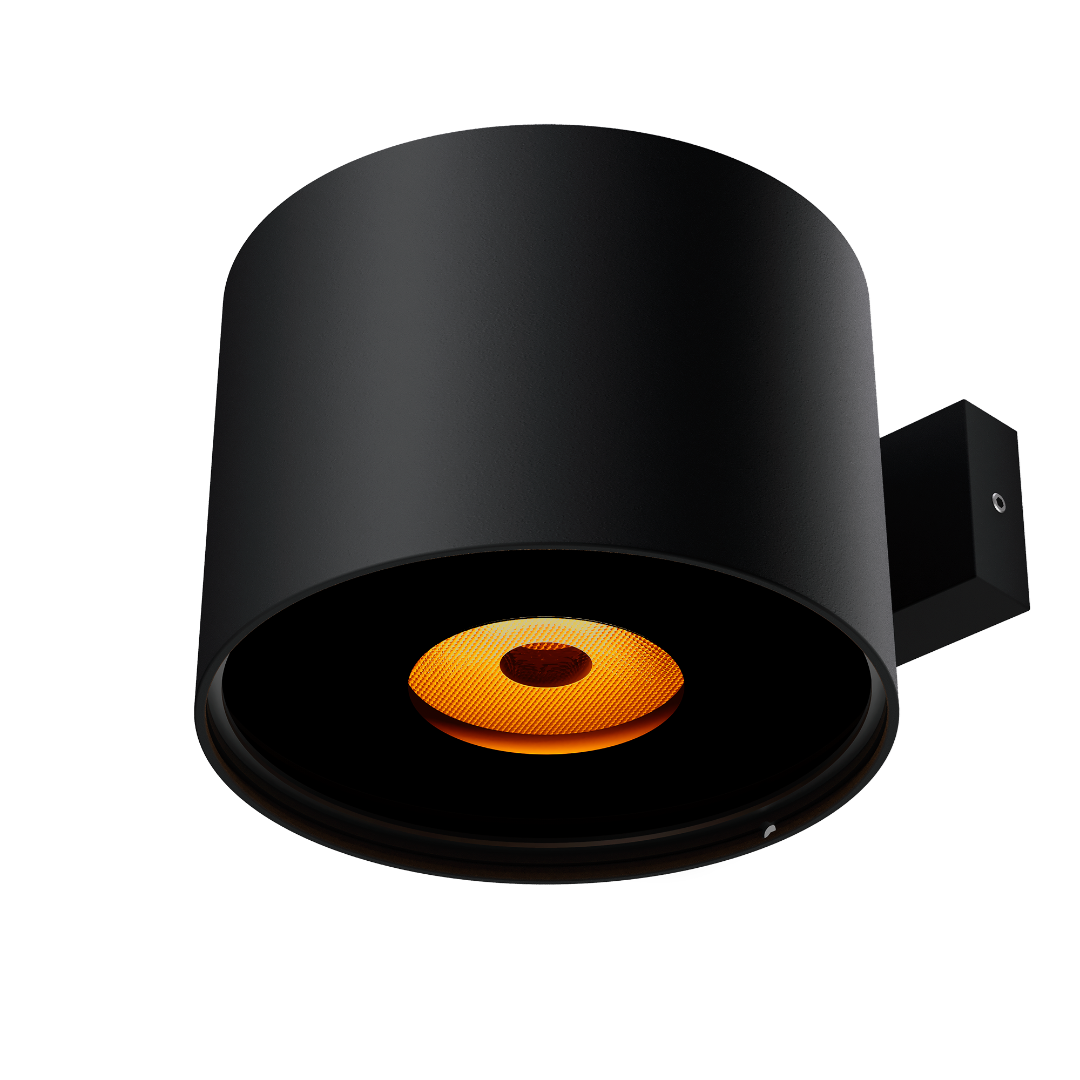

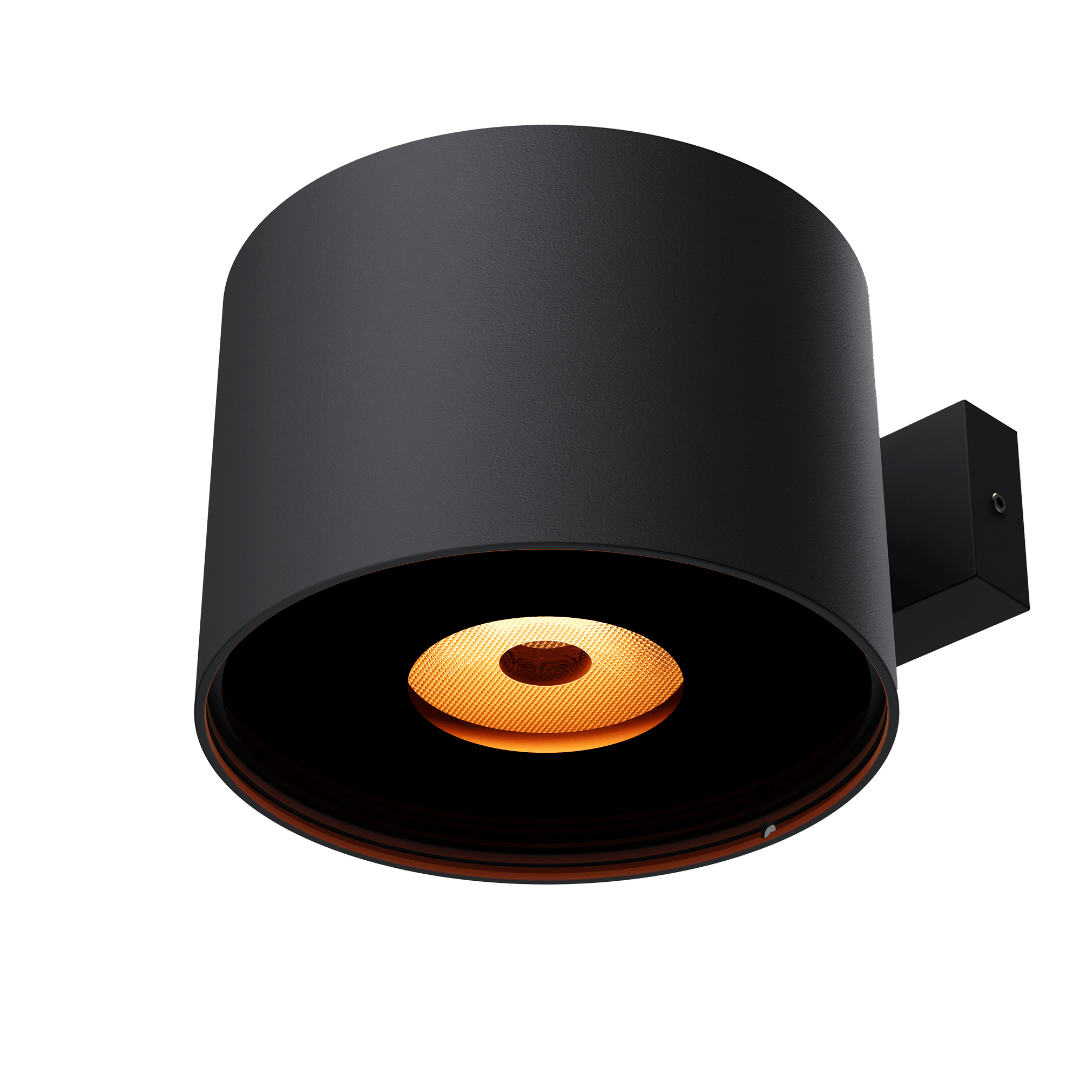

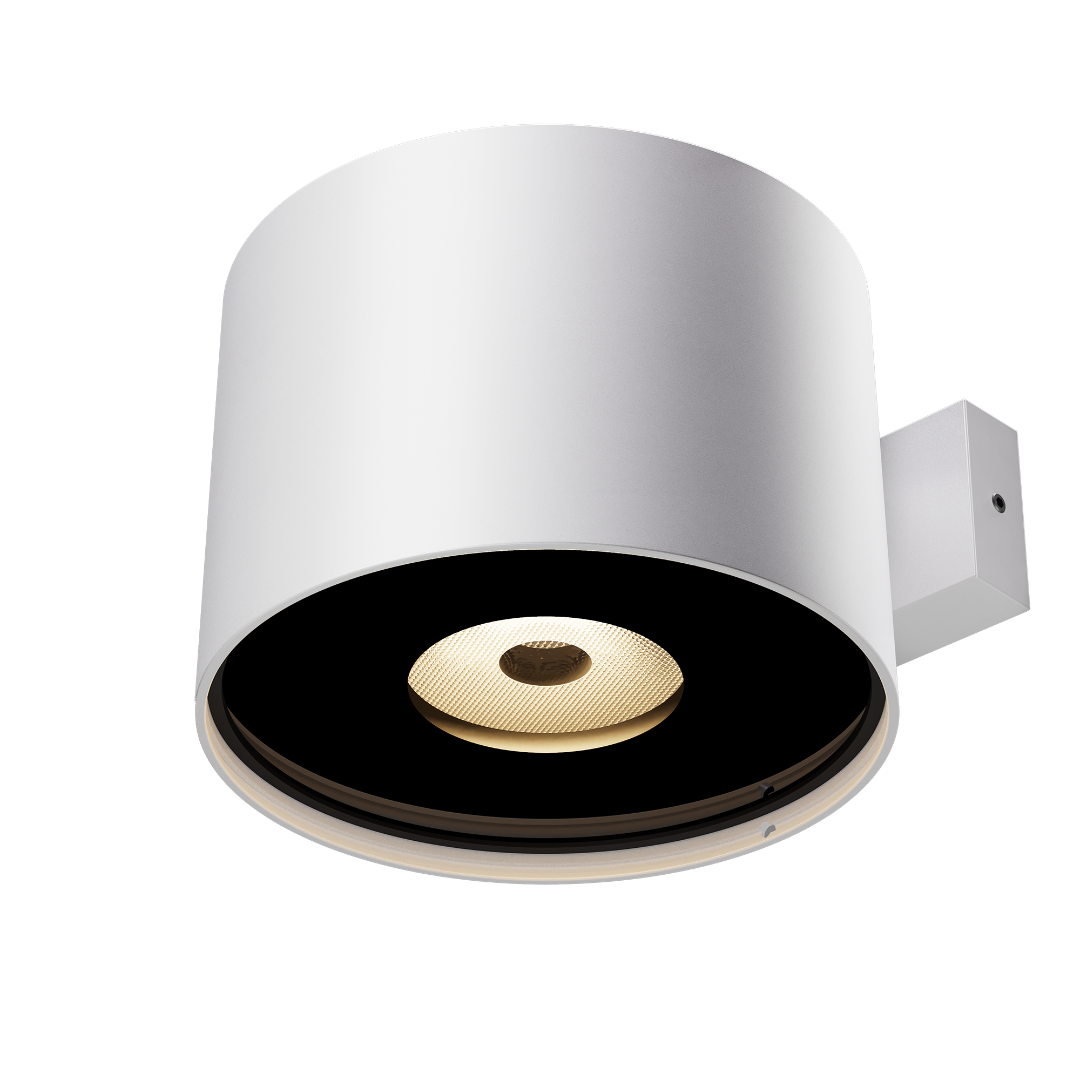

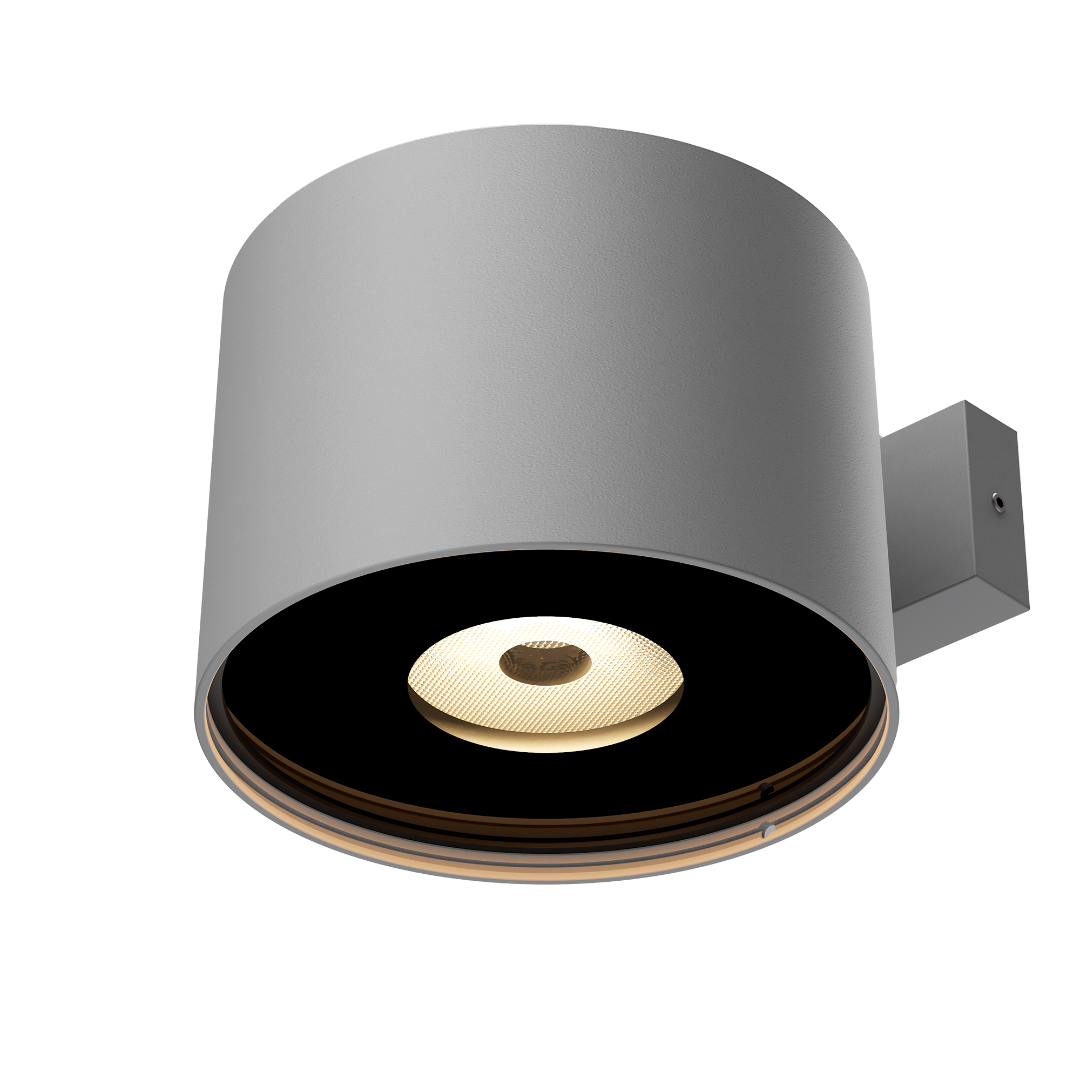

1000K, 1800K, 2200K, 2700K or 3000K premium quality COB LEDs (1000K and 1800K not available for DS PRO Commercial)

Optical configuration

18° NA (Narrow)
25° ME (Medium)
35° WI (Wide)
50° EW (Extrawide)
22x65° EL (Elliptical)
96° PD (Prismatic Diffuser)

Max. Delivered lumen output

Commercial 1399 lm / Residential 999 lm (3000K CRI 80 NA)

Max. lumen/Watt

101 lm/W

Input voltage

220-240VAC / 50-60 Hz

Power consumption

Commercial 13.8W / Residential 9.9W (3000K/2700K/2200K) / 10.6W (1800K) / 8.6W (1000K)
